Shaft Sleeve for Mission Magnum 2500 Supreme & MCM 250 Series Pumps | Ceramic and Stainless Steel Replacement Parts

Shaft Sleeve 20613-21G-7A(641102181), P25SHSLVC Ceramic| 20943-21A(641102182) Stainless Steel| Evergrow PN 7A0613 & 7A0943

In oilfield drilling and industrial fluid handling applications, centrifugal pumps operate under demanding conditions involving abrasive fluids, continuous operation, and high mechanical loads. The performance and service life of pump components depend greatly on the quality of wear parts installed inside the pump assembly.

The shaft sleeve is one of the important wear components in centrifugal pumps. It protects the pump shaft from direct contact with seals, packing, and abrasive fluids, helping to reduce shaft damage and improve equipment reliability.

Evergrow supplies high-quality replacement shaft sleeves for Mission Magnum 2500 Supreme pumps, Sandmaster pump models, MCM 250 Series pumps, and other equivalent centrifugal pump systems.

Available replacement options include:

· Ceramic Shaft Sleeve

o MCM PN: P25SHSLVC

o Mission PN: 20613-21G-7A, 641102181

o Evergrow PN: 7A0613

· Stainless Steel Shaft Sleeve

o Mission PN: 20943-21A, 641102182(stainless steel 304)

o Mission PN: 20943-04A, 641103437 (SS316)

o Evergrow PN: 7A0943

These shaft sleeves are designed for customers requiring reliable replacement components for drilling, mining, and industrial fluid transfer applications.

Product Information

Ceramic Shaft Sleeve

Stainless Steel Shaft Sleeve

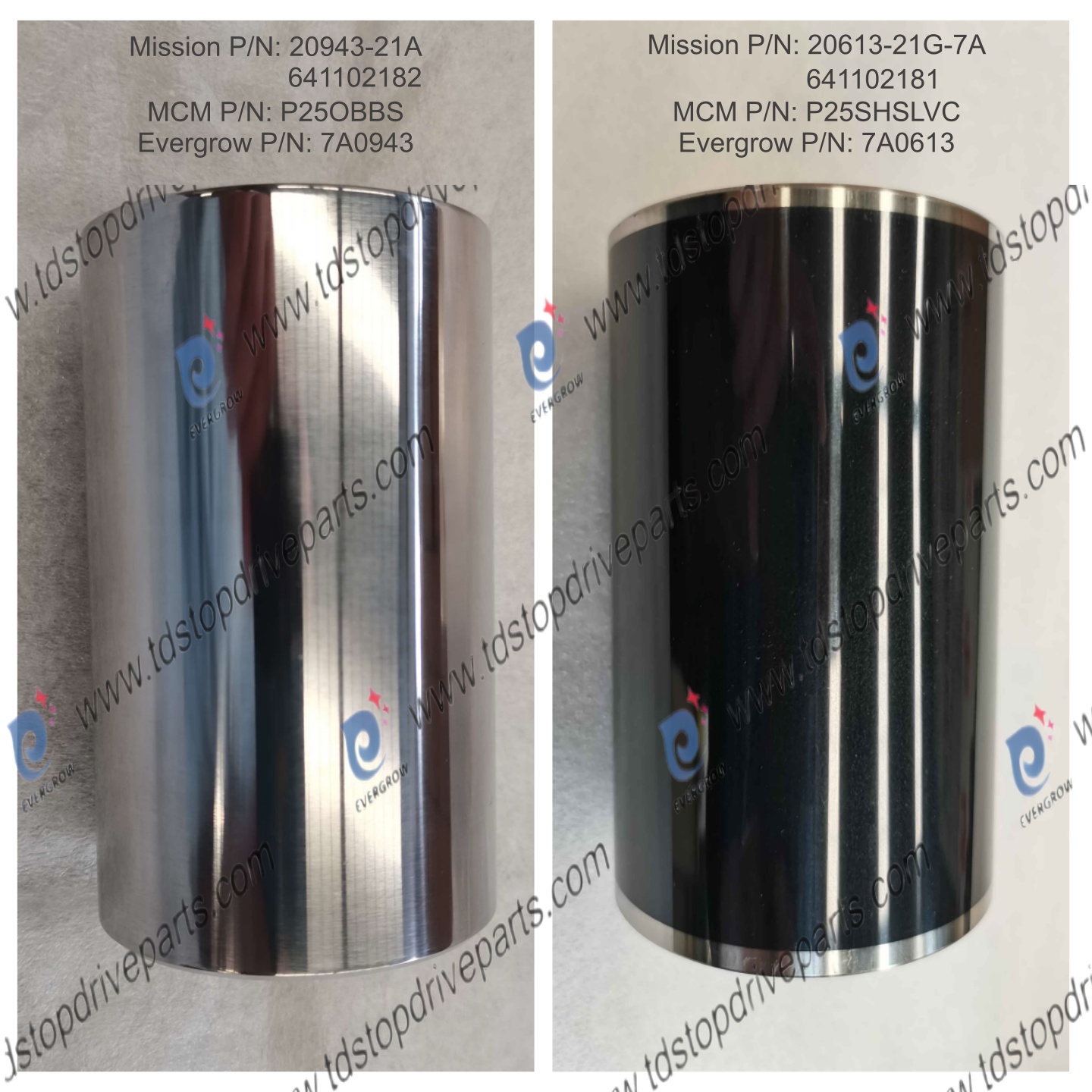

Product Photos

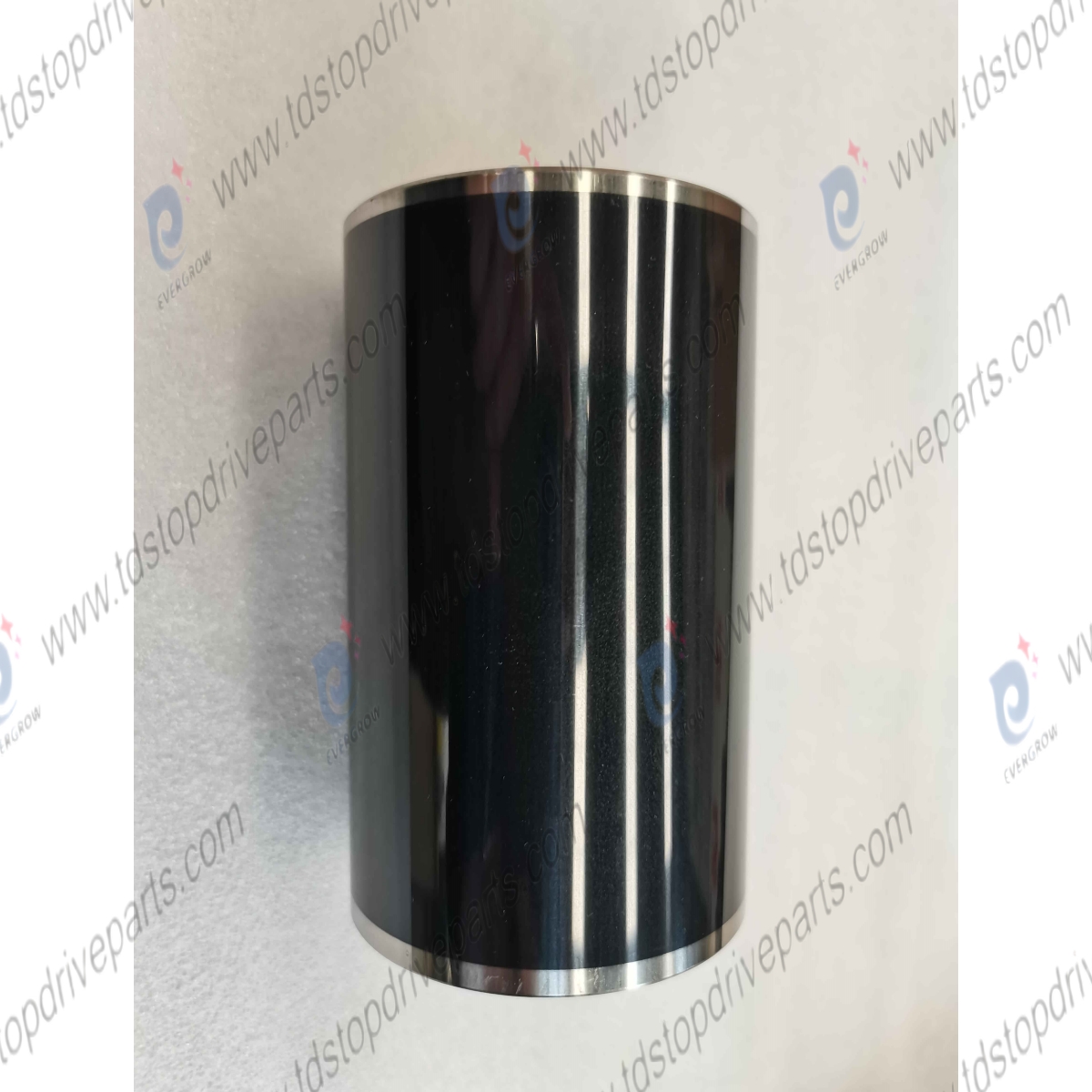

Ceramic Shaft Sleeve

Mission PN 20613-21G-7A(641102181) | MCM PN P25SHSLVC | Evergrow PN 7A0613

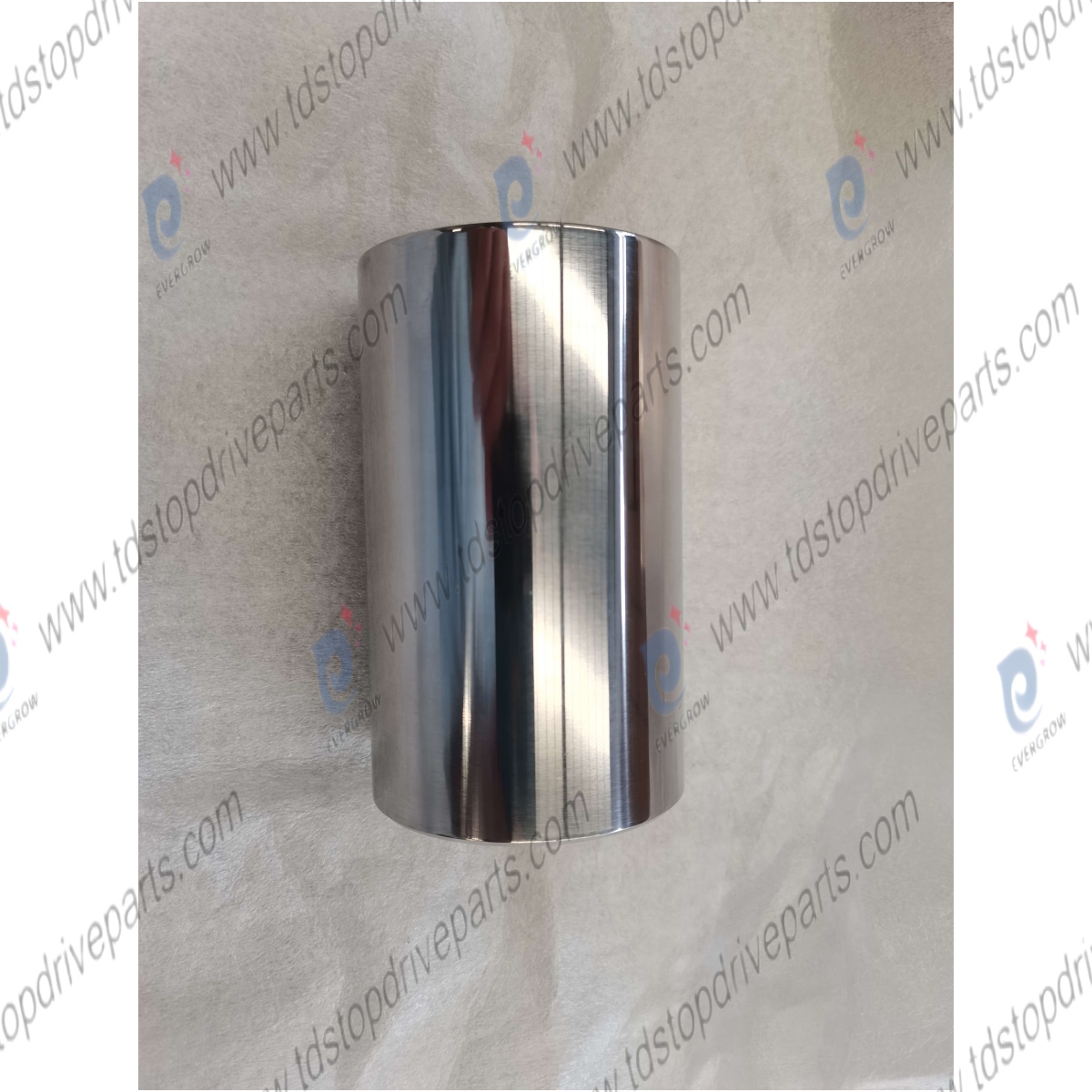

Stainless Steel Shaft Sleeve

Mission PN 20943-21A(641102182)/ 20943-04A(641103437 (SS316)) /| Evergrow PN 7A0943

What Is a Shaft Sleeve in a Centrifugal Pump?

A shaft sleeve is a cylindrical protective component installed around the pump shaft in centrifugal pump assemblies.

During operation, the pump shaft rotates continuously while exposed to mechanical loads and fluid conditions. Without proper protection, the shaft surface may experience wear caused by:

· Packing friction

· Mechanical seal contact

· Abrasive drilling fluids

· Corrosive fluids

· Continuous rotation

The shaft sleeve provides a replaceable wear surface, helping protect the more expensive pump shaft and reducing maintenance costs.

Instead of replacing the complete shaft after wear occurs, operators can replace the shaft sleeve as part of routine maintenance.

Shaft Sleeve Application in Mission Magnum|Sandmaster|2500 Supreme Pumps

The Mission Magnum|Sandmaster|2500 Supreme centrifugal pump is widely used in oilfield drilling operations, particularly for handling drilling fluids and other demanding pumping applications.

Because drilling fluids often contain abrasive solids, pump wear components must provide excellent durability and resistance.

The shaft sleeve works together with other pump components, including:

· Impellers

· Mechanical seals

· Bearings

· Pump shafts

· Wear plates

· Packing components

Using a suitable replacement shaft sleeve helps maintain proper pump operation and reduces unexpected downtime.

Ceramic vs Stainless Steel Shaft Sleeve

Evergrow supplies both ceramic and stainless steel shaft sleeve options depending on customer requirements and operating conditions.

Ceramic Shaft Sleeve

MCM PN P25SHSLVC
Mission PN 20613-21G-7A(641102181)
Evergrow PN 7A0613

Ceramic shaft sleeves are known for:

· Excellent wear resistance

· High hardness

· Good resistance to abrasive fluids

· Long service life in demanding applications

They can be an excellent choice where pump systems handle abrasive materials and extended operating life is required.

Stainless Steel Shaft Sleeve

Mission PN 20943-04A(641103437 (SS316) / 20943-21A(641102182)
Evergrow PN 7A0943

Stainless steel shaft sleeves provide:

· Good corrosion resistance

· Reliable mechanical strength

· Good compatibility with many fluid environments

· Cost-effective maintenance performance

They are commonly selected for general industrial and drilling applications where stainless steel performance characteristics are suitable.

Common Applications

These shaft sleeves are suitable for centrifugal pump systems used in:

· Oil and gas drilling operations

· Drilling mud circulation systems

· Mining applications

· Industrial fluid handling

· Oilfield service equipment

· Construction and slurry pumping

Compatible applications include:

· Mission Magnum|2500 Supreme pumps

· Sandmaster pump models

· MCM 250 Series pumps

· Other equivalent centrifugal pump systems

Customers should confirm pump model and part number before ordering.

Why Replace the Shaft Sleeve Regularly?

Because shaft sleeves are wear components, they gradually experience surface wear during operation.

A worn shaft sleeve may contribute to:

· Seal leakage

· Reduced pump efficiency

· Increased shaft damage

· Higher maintenance costs

· Unexpected equipment downtime

Replacing the shaft sleeve during scheduled maintenance can help:

· Protect the pump shaft

· Improve sealing performance

· Extend pump service life

· Reduce repair frequency

· Maintain reliable operation

For drilling contractors and industrial operators, keeping critical pump spare parts available can improve maintenance efficiency.

Advantages of Evergrow Shaft Sleeves

Evergrow supplies replacement shaft sleeves manufactured for compatibility with commonly used centrifugal pump models.

Key advantages include:

Accurate Part Identification

Products are supplied with clear reference numbers:

· MCM PN P25SHSLVC

· Mission PN 20613-21G-7A(641102181)

· Evergrow PN 7A0613

· Mission PN 20943-04A(641103437 (SS316)

· Mission PN 20943-21A(641102182)

· Evergrow PN 7A0943

Reliable Replacement Performance

Quality materials and proper manufacturing processes help provide dependable performance in demanding applications.

Wide Application Range

Suitable for oilfield drilling, mining, and industrial fluid handling operations.

Reduced Maintenance Downtime

Reliable replacement wear parts help maintenance teams complete repairs efficiently.

Global Supply Support

Evergrow provides centrifugal pump spare parts and top drive components to customers worldwide.

Evergrow Centrifugal Pump Spare Parts

In addition to shaft sleeves, Evergrow supplies a wide range of centrifugal pump replacement parts, including:

· Impellers carbide tungsten

· Shear impellers

· Pump shafts

· Wear plates

· Mechanical seals

· Bearings

· Gaskets

· Seal kits

· Pump accessories

Evergrow also specializes in top drive spare parts, including:

· NOV TDS-11SA spare parts

· Canrig top drive parts

Our goal is to provide reliable replacement solutions for oilfield and industrial equipment customers worldwide.

How to Order Shaft Sleeve from Evergrow

If you require:

· Ceramic Shaft Sleeve MCM P25SHSLVC

· Mission 20613-21G-7A(641102181)

· Evergrow 7A0613

· Mission 20943-04A(641103437 (SS316))

· Mission 20943-21A(641102182)

· Evergrow 7A0943

Please provide:

· Pump model

· OEM part number

· Required material (ceramic or stainless steel)

· Quantity

· Delivery destination

Our team can help confirm the correct replacement part and provide a quotation.
