| Quantity: | |
|---|---|
3×2×13,4×3×13,5×4×14,6×5×11,6×5×14,8×6×11,8×6×14,10×8×14
Linhai Evergrow
19204-XX-30,19206-XX-30,19224-XX-30,19121-XX-30,19116-A0-30,21867-XX-30
Centrifugal pump impellers are critical rotating components designed to convert mechanical energy into hydraulic energy and generate the flow and pressure required for fluid transfer. In oil and gas drilling operations, the correct impeller is essential for maintaining reliable centrifugal pump performance, especially when handling drilling fluids and other demanding liquids.
Linhai Evergrow supplies replacement Mission centrifugal pump impellers for several widely used pump configurations, including Mission Magnum, Mission 2500 Supreme, and Mission Sandmaster series. These replacement parts are available in different sizes and designs to match specific pump applications.
An impeller is the primary rotating hydraulic component inside a centrifugal pump. As the impeller rotates, fluid enters near the center and is accelerated outward through the impeller passages. This movement creates the hydraulic energy needed to circulate fluid through the pump system.
Because the impeller directly contacts the pumped fluid, it can experience wear from solids, abrasive particles, erosion, corrosion, and continuous operation. Selecting a correctly matched replacement impeller is therefore important for maintaining pump efficiency and service reliability.

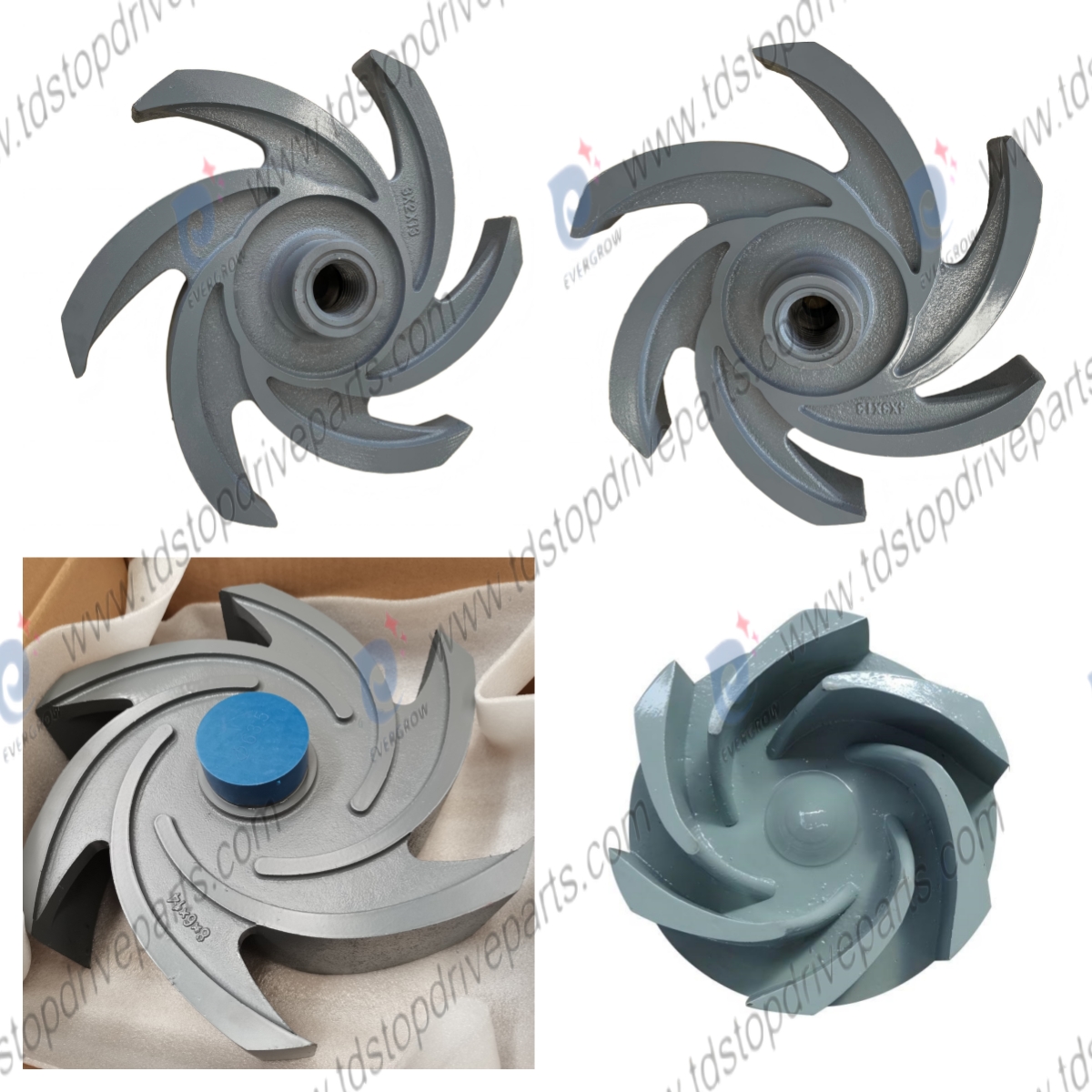

Mission Magnum centrifugal pumps are widely used in oilfield fluid-handling applications. Evergrow provides replacement impellers for Mission Magnum and equivalent 250-type centrifugal pump configurations.
Common open-impeller configurations include:
Evergrow Part Nos | Mission Part | Mission Part | Size | Material |
22503213 | 19204-XX-30 | P25D233MRxxx | Impeller,3×2×13 | Hard Iron |
22504313 | 19206-XX-30 | P25D343MRxxx | Impeller,4×3×13 | Hard Iron |
22505414 | 19224-XX-30 | P25D454MRxxx | Impeller,5×4×14 | Hard Iron |
22506511 | 19121-XX-30 | P25D561MRxxx | Impeller,6×5×11 | Hard Iron |
22506514 | 19121-XX-30 | P25D564MRxxx | Impeller, 6×5×14 | Hard Iron |
22508611 | 19121-XX-30 | P25D681MRxxx | Impeller, 8×6×11 | Hard Iron |
22508614 | 19116-A0-30 | P25D684MRxxx | Impeller,8×6×14 | Hard Iron |
22510814 | 21867-XX-30 | - | Impeller,10×8×14 | Hard Iron |
Evergrow lists these configurations for its 250-type centrifugal pump parts and identifies hard iron as the material for the corresponding standard impellers.
The exact impeller selection should always be based on the pump size, casing configuration, impeller design, and required operating conditions.
The Mission 2500 Supreme uses a different impeller arrangement from the standard Magnum I configuration. Evergrow's product information notes that the 2500 Supreme has semi-open impellers and a wear pad in front of the casing, providing a pump configuration designed for demanding fluid-handling service.
Available Mission 2500 Supreme impeller configurations include:
Evergrow Part No. | Mission Part No. | Description | Material |
2500M3213 | H19204-XX-30 | 3×2×13 Open | Hard Iron |
2500M4313 | H19206-XX-30 | 4×3×13 Open | Hard Iron |
2500M5414 | H2523-XX-30 | 5×4×14 Semi-Open | Hard Iron |
2500M6511 | H2524-XX-30 | 6×5×11 Semi-Open | Hard Iron |
2500M6514 | H2524-XX-30 | 6×5×14 Semi-Open | Hard Iron |
2500M8611 | H2524-XX-30 | 8×6×11 Semi-Open | Hard Iron |
2500M8614 | H2525-XX-30 | 8×6×14 Semi-Open | Hard Iron |
250M10814 | H2526-XX-30 | 10×8×14 Semi-Open | Hard Iron |
Pump performance can change significantly when an impeller becomes worn or damaged. Erosion of the vanes, excessive clearance, cracking, corrosion, or imbalance can reduce hydraulic efficiency and increase vibration.
During pump maintenance, technicians should inspect the impeller together with the casing, wear pad, shaft, shaft sleeve, mechanical seal, bearings, and related components.
Common indications of an impeller requiring inspection or replacement include:
· Reduced pump flow or pressure
· Increased vibration
· Unusual operating noise
· Visible vane erosion or damage
· Excessive wear around the impeller
· Reduced pumping efficiency
· Abnormal clearance between rotating and stationary components
Replacing a severely worn impeller can help restore the intended hydraulic performance of the pump.
Mission centrifugal pumps are available in multiple sizes, and impellers are not interchangeable simply because they have similar appearances. The pump model, suction/discharge size, impeller diameter, open or semi-open design, and material should all be checked before ordering.
For example, a 6×5×14 impeller should not automatically be substituted for a 6×5×11 version. The correct impeller must correspond with the pump casing and overall hydraulic configuration.
Evergrow supplies replacement centrifugal pump components that are designed to be interchangeable with standard Mission, MCM, Halco, Harrisburg, and other equivalent pump applications.
Linhai Evergrow supplies Mission centrifugal pump spare parts for oilfield drilling, well servicing, production, and other industrial fluid-handling applications. Its product range includes impellers, casings, shafts, shaft sleeves, mechanical seals, bearings, wear pads, stuffing boxes, and complete centrifugal pump assemblies.
For customers searching for Mission Magnum impellers, Mission 2500 Supreme impellers, Mission centrifugal pump parts, or replacement 250 Series impellers, Evergrow can provide different sizes and configurations according to the required pump model.
Before ordering, customers should provide the Mission pump model, pump size, original part number, impeller diameter, and required material or design whenever available.
If you need a replacement Mission centrifugal pump impeller for Magnum, 2500 Supreme, Sandmaster, or an equivalent 250 Series pump, contact Linhai Evergrow for part identification, availability, quotation, and technical information.
Email: sales@linhaievergrow.com
Tel./WhatsApp: +86 189 9192 9885
With more than ten years of experience in the oil and gas equipment industry and an ISO 9001-certified quality management system, Evergrow supplies centrifugal pump spare parts to drilling contractors, distributors, maintenance companies, and oilfield equipment users worldwide.
