Radial Bearing 30151954 for TDS11 top drive

The Radial Bearing OEM Ref. 30151954, supplied by Linhai Evergrow as Evergrow Part #60303908, is a replacement component used in the shot pin mechanism of the NOV TDS-11SA top drive. It is identified as Bearing, Radial, Light and forms part of the Shot Pin Assembly OEM Ref. 30151875.

Although the radial bearing is a relatively small component, its condition is important to the mechanical operation of the shot pin assembly. During top drive maintenance, the bearing should be inspected together with the other mating components rather than treated as an independent replacement item.

Product Details

Product: Bearing, Radial, Light

OEM Reference: 30151954

Evergrow Part Number: 60303908

Related Assembly: Shot Pin Assembly 30151875

Application: NOV TDS-11SA top drive

Application Area: Shot pin mechanism

Product Category: TDS-11SA top drive spare parts

The 30151954 radial bearing and 30151955 bearing retainer are listed together with Shot Pin Assembly 30151875 in TDS-11SA spare-parts references.

Role of Radial Bearing 30151954

A radial bearing is designed to support radial loading and allow controlled relative movement between mating mechanical components. Within the TDS-11SA shot pin assembly, the bearing works as part of a group of components designed to maintain the required mechanical relationship between the shot pin mechanism and its surrounding parts.

The shot pin system is subjected to repeated mechanical movement and operating loads during top drive service. As a result, bearing condition can gradually change through normal wear, contamination, inadequate lubrication, or damage to mating components.

A worn bearing may no longer provide the same smooth movement and support as a serviceable component. For this reason, bearing condition should be considered when diagnosing wear or abnormal operation within the shot pin mechanism.

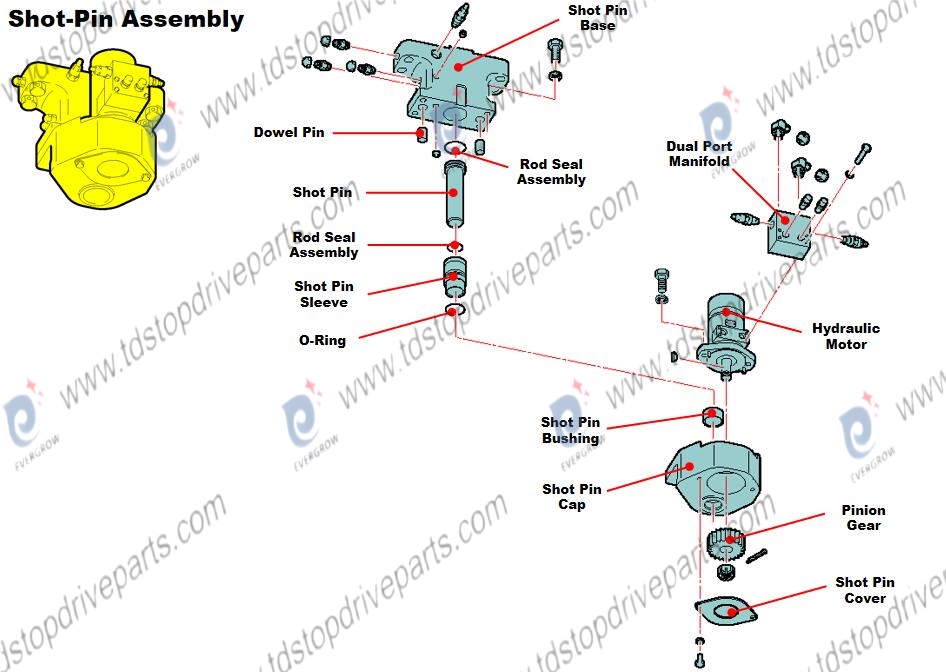

Part of Shot Pin Assembly 30151875

The 30151954 radial bearing is one of the individual components associated with Shot Pin Assembly 30151875, for which Evergrow provides the corresponding replacement assembly under Part #60303750. Related components include:

Shot Pin Assembly: 30151875 / Evergrow 60303750

Shot Pin: 30173958 / Evergrow 60347916

Shot Pin Sleeve: 30151951 / Evergrow 60303902

Housing, Shot Pin: 30151953 / Evergrow 60303906

Bearing Retainer: 30151955 / Evergrow 60303910

Flange Bushing, Shot Pin: 30151961 / Evergrow 60303922

These components are associated with the same TDS-11SA shot pin mechanism.

Inspection and Replacement Considerations

During scheduled maintenance or a top drive overhaul, maintenance personnel should check the radial bearing for signs of abnormal wear, rough movement, damage, corrosion, or other conditions that could affect its service performance.

It is also important to inspect the surrounding components. A new bearing installed together with a severely worn sleeve, housing, retainer, or other mating component may not provide the expected result.

When replacing the bearing, correct identification is essential. Customers should verify the OEM Ref. 30151954 and corresponding Evergrow Part #60303908, together with the applicable top drive model, before ordering.

Evergrow Replacement Radial Bearing for TDS-11SA

Linhai Evergrow supplies replacement spare parts for NOV TDS-11SA top drive systems, including individual components for shot pin assemblies. The Radial Bearing 30151954 / Evergrow 60303908 is available for top drive repair, preventive maintenance, and overhaul requirements.

For quotation and product information:

Linhai Evergrow Petroleum Equipment Co., Ltd.
Email:sales@linhaievergrow.com
Tel./WhatsApp: +86 18991929885

Please include 30151954 or 60303908 in your inquiry to help ensure accurate part identification.

All manufacturer numbers, names, and descriptions are used for reference purposes only. Evergrow is not an OEM authorized reseller of the parts.
