30156256
Evergrow
60312512

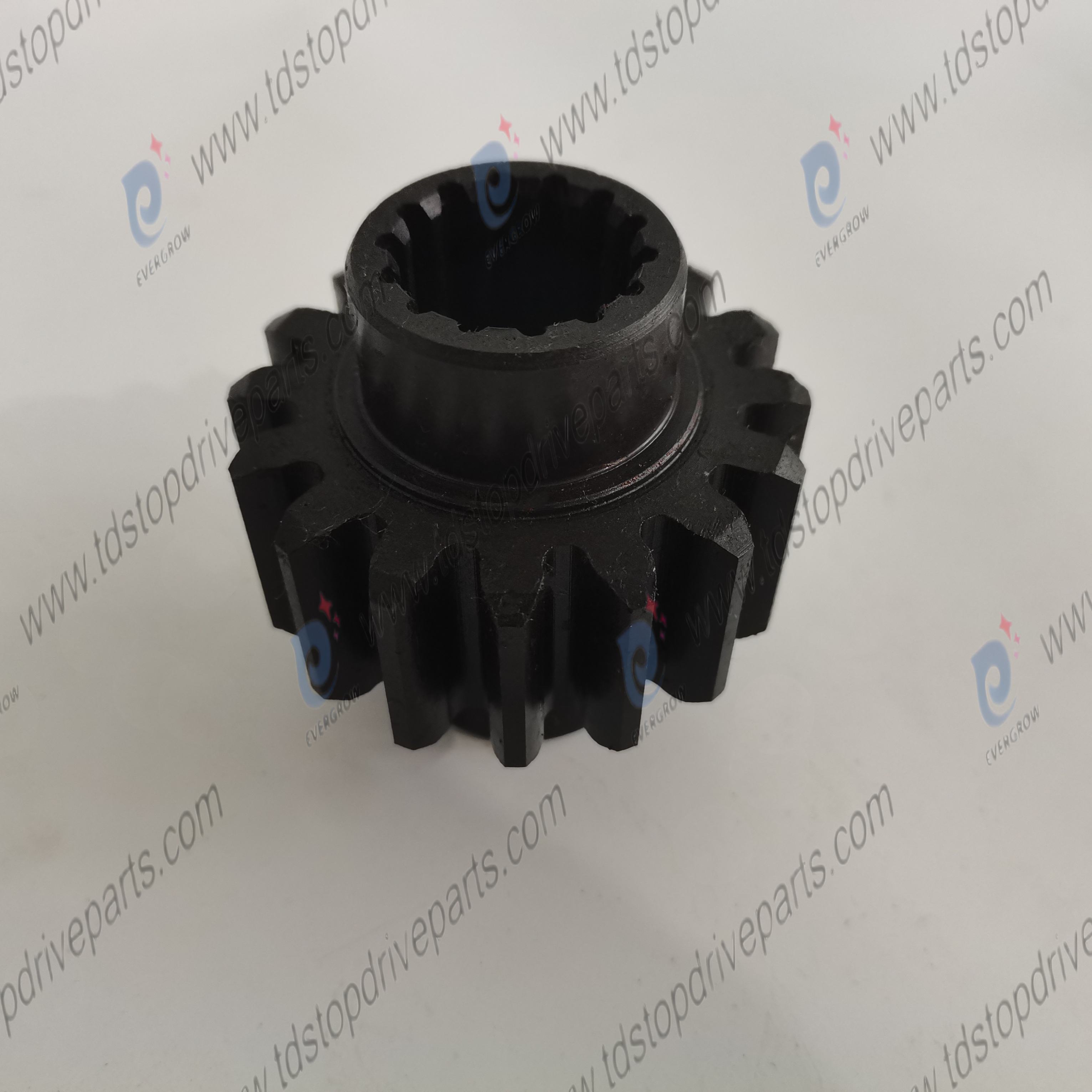

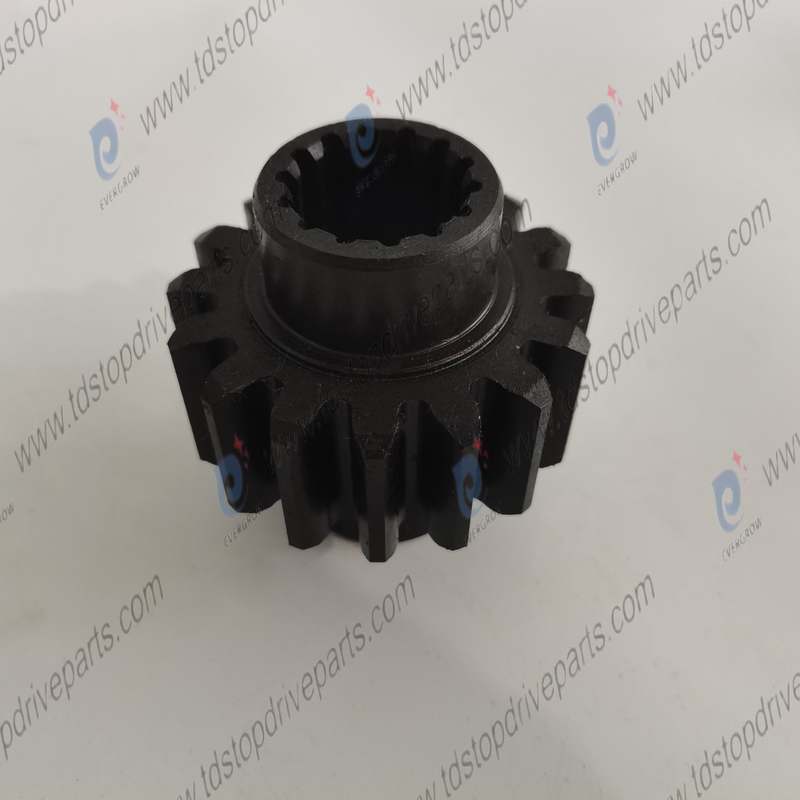

In a top drive system, the reliability of an assembly depends on the condition and compatibility of its individual components. The Gear 30156256, supplied by Linhai Evergrow under Part #60312512, is a replacement part applicable to the NOV TDS-11SA Shot Pin Assembly 30151875.
For drilling equipment maintenance teams and spare parts buyers, identifying the correct gear by its OEM reference number is an important step when planning repairs, servicing the shot pin assembly, or preparing replacement parts inventories.
Product Name | Gear, Drive |
OEM Part Ref. | 30156256 |
Evergrow Part # | 60312512 |
Application | NOV TDS-11SA Top Drive |
Related Assembly |
When sourcing this component, customers should confirm the OEM reference 30156256 and Evergrow Part 60312512 against the applicable equipment parts list to ensure the replacement matches the required configuration.
The shot pin assembly is a component group within the NOV TDS-11SA top drive system. Its individual parts must be correctly matched and maintained to support the intended operation of the assembly.
As a mechanical component, a gear is generally used to transmit motion or force through engagement with compatible parts. The precise function of Gear 30156256 depends on its specific design and position within the shot pin assembly. For this reason, equipment documentation should be consulted when confirming its installation and service requirements.
Maintaining the condition of individual components is an important part of top drive maintenance. Damage or excessive wear affecting a gear may require further inspection of the associated components before the assembly is returned to service.

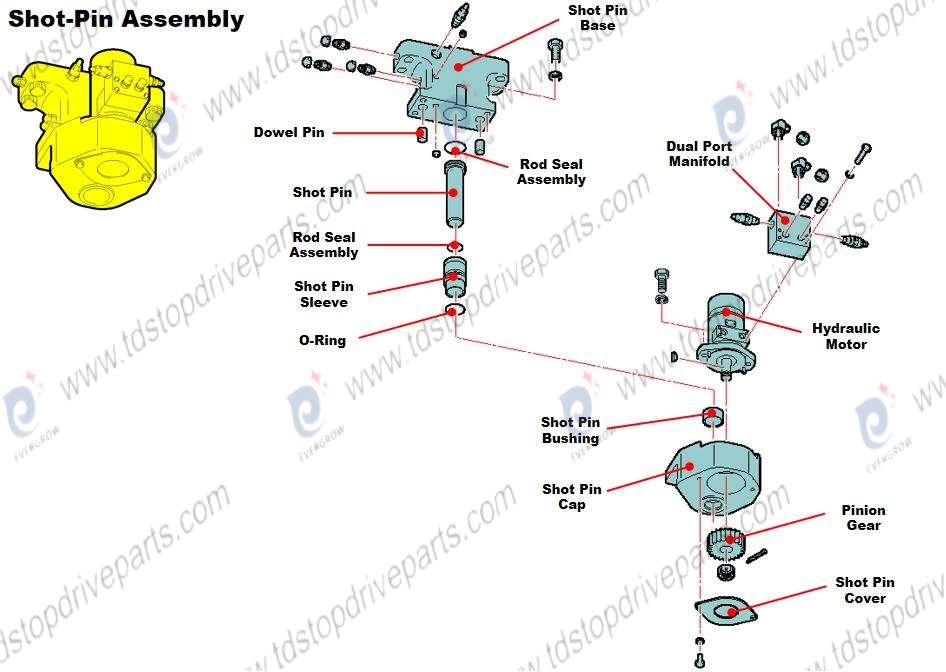

30151875 shot pin assembly full list | ||
# | OEM Ref Nos | Description |
1 | ||
2 | ||
3 | ||
4 | ||
5 | ||
6 | 30151959 | RATAINER,PIN |
7 | ||
8 | ||
9 | 30156250 | GEAR,COMPOUND,40X25 |
10 | 30156256 | GEAR,DRIVE |
11 | 110056 | ROD SEAL ASSY |
12 | 110061-326 | PISTON SEAL ASSY |
13 | 112754-130 | BEARING, SINTER BRONZE, FLANGED |
14 | ||
15 | 50006-6-C5D | SCREW,CAP-HEX HEAD |
16 | 50006-8-C5D | SCREW,CAP-HEX HEAD |
17 | 50008-12-C5D | SCREW,CAP-HEX HEAD |
18 | 50906-C | WASHER,LOCK-REGULAR |
19 | 50908-C | WASHER,LOCK-REGULAR |
20 | 51300-226-B | O-RING |
21 | 53000-01-S | PLUG,EXTERNAL PIPE |
22 | 53201-SS | FITTING,GREASE,STRAIGHT |
23 | 53500-225 | RING,RETAINING-INTERNAL |
24 | 56555-6-S | TEE,O-RING |
25 | 56529-6-6-S | CONNECTOR,O-RING BOSS/37 |
26 | 56544-6-S | CAP,FEMALE 37 DEG. SEAT |
27 | 94522-1EN | VALVE,CART,PRES,RELIEF |
28 | 30152190-SS | MANIFOLD ASSEMBLY |
29 | 50005-26-C5D | SCREW,CAP-HEX HEAD |
30 | 50905-C | WASHER,LOCK-REGULAR |
31 | Z6001 | LOCKWIRE,.051 DIA |
32 | 93024-6JIC | FITTING,TEST,1/4 NPT |
33 | ||
34 | 30152190-1 | MANIFOLD ASSEMBLY(24 VDC EExD VAVLE) |
35 | 30152190-2 | MANIFOLD ASSEMBLY(24 VDC EExD VALVE) |
36 | 30152190-3 | MANIFOLD ASSEMBLY(COVER PLATE)(NO SOLENOID VALVE) |
37 | 30152190-4 | MANIFOLD ASSEMBLY(COVER PLATE)(NO SOLENOID VALVE) |
During scheduled maintenance of the NOV TDS-11SA Shot Pin Assembly 30151875, maintenance personnel should follow the manufacturer's procedures to inspect relevant components and identify signs of wear or damage.
Depending on the applicable inspection requirements, attention may be given to visible tooth damage, unusual wear patterns, looseness, or other abnormalities. If a gear requires replacement, the mating components and related assembly should also be checked as appropriate.
Correct part identification is particularly important when ordering replacement gears. Similar-looking components may differ in dimensions or design, so appearance alone is not sufficient to confirm compatibility. Always verify the part reference, assembly number, and equipment model before purchasing.
Linhai Evergrow supplies replacement parts for NOV top drive equipment, including components used in the TDS-11SA system. Our product references help customers connect OEM part numbers with corresponding Evergrow part numbers during purchasing and maintenance planning.
If you are looking for Gear 30156256, Evergrow Part #60312512, applicable to the NOV TDS-11SA Shot Pin Assembly 30151875, contact Evergrow for a quotation and availability information.
Providing the required quantity and equipment application with your inquiry can help streamline the quotation process and support more efficient spare parts planning.
