Parts for EG-250 Series centrifugal pump

Parts for EG-250 Series centrifugal pump

Parts for EG-250 Series centrifugal pump

Share to:

Parts for EG-250 Series centrifugal pump

EG-250 Series Centrifugal Pump Parts, 100% interchangeable with Mission, Halco, Harrisburg, etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

EG-250 Series Centrifugal Pump Parts

ITEM	QTY	Evergrow No.	Mission No.	MCM No.	DESCRIPTION	MATERAIL
1*	1	See below	See below		Casing
1A	1	1A0399	10399-46-1	P25HG	Gasket,casing	Vellumoid
1B	12	1B3932	3932-61	-	Nut,casing	Stl
1C	12	1C3862	3862-76	P25HSN	Stud,casing	Stl
1D	1	1D2412	8505-4-1	P25ODP	Plug,Casing Drain	Stl
1E	1	1E2412	8505-4-1	P25ODP	Plug,flush line	Stl
2*	1		See below		Impeller
2A	1	2A1911	19110-72	P25IMS	Seal,impeller	Viton
2B	1	2B3002	7300239	-	Washer,impeller	Stl
2C	1	2C4156	7415648	-	Bolt,impeler lock	Stl

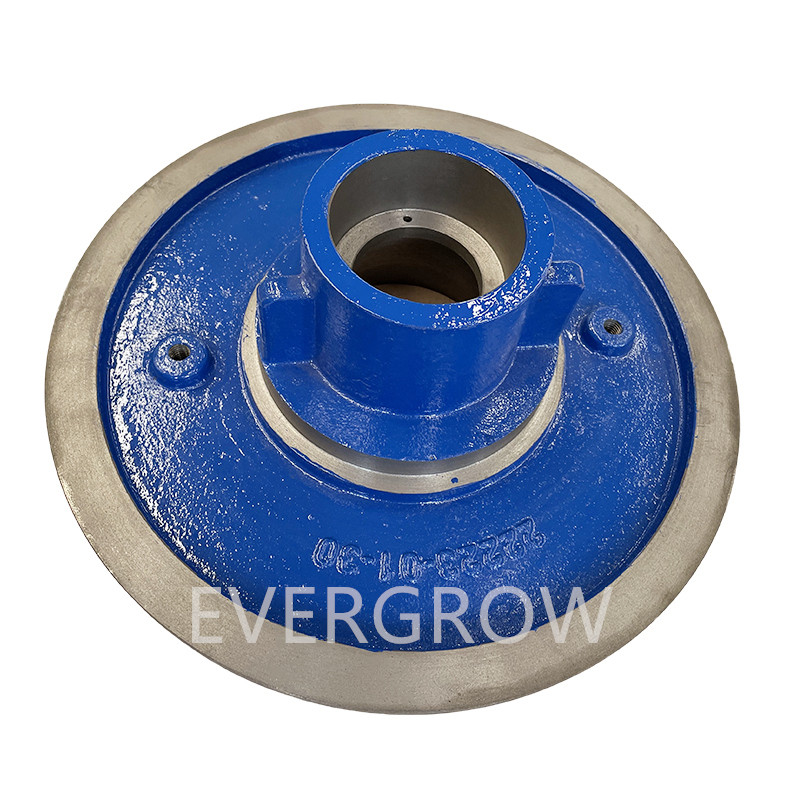

3*#	1	322223	22223-01-30	P25SB/MS	Stuffing box,mech.seal	Hard Iron
3*&	1	320614	20614-01-30	P25SB/PK	Stuffing box,packed	Hard Iron
3A	2	3A8617	3861-117	P25SBB	Bolt,stuffing box	Stl
4	1	420622	20622A	P25PG	Gland assy,packing	Stl 304
5A#	1	5A2451	22451-1	P25MS/TT	Seal,mechanical	Tung/Tung
5A#	1	5A684G	648402600	P25PMSG	Packing, Shaft - M.S. Backup	Graphite Acrylic
5A#	Option	5A684K	648402600	-	Packing, Shaft - M.S. Backup	Kevlar
5A	1	5A251B	25014-04M-B	P25PMSK	Packing, Shaft - w/latern ring	Graphite/Acrylic
5A	Option	5A251D	250147-04M-D	P25PMST	Packing, Shaft - w/latern ring	Teflon, White
5A#	Option	5A251C	25014-04M-C	-	Packing, Shaft - w/latern ring	Kevlar
6	2	6B3701	B3701A	P25GABA	Bolt assy,gland	Stl 304
7	1	720612	20612-02-33	P25SHFT	Shaft	42CrMo
7A#	1	7A0943	20943-04A	-	Sleeve,shaft	38CrMoAl
7A&	1	7A0613	20613-21G-7A	P25SHSLVC	Sleeve,shaft,ceramic	Ceramic
7B	1	7B9026	4371-5-21	P25CK	Key,shaft	Stl
7C	1	7C2344	23444-01-72	P25SSS	Seal,shaft sleeve	Viton
8	1	822210	22210-1A	P25SRW	Deflector assembly	Composite
9	1	920618	20618-12-1	P25PED	Frame,grease lubricated	Cast iron
9C	1	9C8505	8505-05	-	Plug, Frame Drain	Stl
9D	1	9D1967	1967-1-1	-	Breather	Stl
9G	3	9G2538	2538-1H	-	Bolt,casing jack	Stl
10A	1	10A0626	20626	P25IBBC	Cover,inboard bearing	Iron
10B	1	10B0625	20625	P25IBBCG	Gasket,I.B.Brg.Cover	Vegetable fiber
10C	1	10C0619	20619-01	P25IBBOS	Oil seal, I.B.Brg.Cover	Buna-n
10D	2	10D3861	3861-1-1	P25IBBCB	Bolt, I.B.Brg.Cover	Stl
10E	2	10E1932	1932-2-1	-	Nut, I.B.Brg.Cover	Stl
10F	1	10F2062	20620-01	P251BBES	Exclusion Seal, I.B. Brg. Cvr.	Buna-n
10G	1	10G1641	21641-01	P25ZGF	Grease fitting	Stl
10H	1	10H6841	648411908	P25ZGF	Grease fitting	Stl
11	1	1100901	661 00901 OA	-	Bearing, Inboard & Spacer	Roller
11	1	1120615	20615-1	P25IBBRG	Bearing,inboard	Vendor
12	1	1220624	20624-01-01	P25OBBH	Housing,O.B.bearing	Iron
12A	1	12A7496	7496-253	P25OBBHS	Seal, O.B.Brg.housing	Buna-n
12B	4	12B3861	3861-138	P25BHB	Bolts, O.B.Brg.housing	Stl
12C	2	12C3962	3932-62	P25BCP	Nut, O.B.Brg.housing jam	Stl
13	1	1320617	20617A	P25OBBC	Cover,O.B.Bearing	Iron
13A	1	13A9368	19368-01	P25ZGF	Grease fitting	Brass
13B	1	13B7496	7496-26	P25OBBCS	O-ring, O.B.Brg.Cover	Buna-n
13C	1	13C0619	20619-02	P25OBBOS	Oil seal, O.B.Brg.Cover	Buna-n
13D	2	13D3861	3861-139	P25OBBCB	Bolt, O.B.Brg.Cover	Stl
14	2	1420616	20616-1	P25OBBRG	Bearing, O.B.	Vendor
14A	1	14A6124	6124-4-1	-	Lockwasher,O.B.Bearing	Stl
14B	1	14B6123	6123-4-1	P25BLNK	Locknut, O.B.Bearing	Stl

ITEM	QTY	EVERGROW No.	Mission No.		DESCRIPTION	MATERAIL

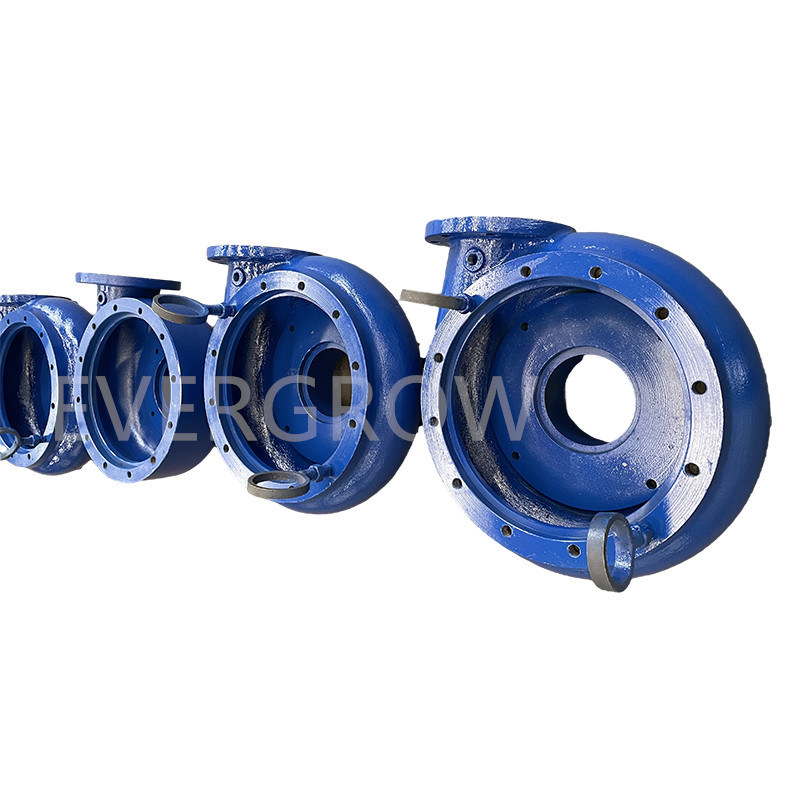

Casings-includes studs,nuts & gasket
1*	1	12503213	19203-01-30A	P25D233H	Casing,3×2×13	Hard Iron
1*	1	12504313	19205-01-30A	P25D343H	Casing,4×3×13	Hard Iron
1*	1	12505414	19222-01-30A	P25D454H	Casing, 5×4×14	Hard Iron
1*	1	12506511	19122-01-30A	P25D561H	Casing,6×5×11	Hard Iron
1*	1	12506514	19123-01-30A	P25D564H	Casing, 6×5×14	Hard Iron
1*	1	12508611	19763-01-30A	P25D681H	Casing, 8×6×11	Hard Iron
1*	1	12508614	19117-01-30A	P25D684H	Casing,8×6×14	Hard Iron
1*	1	12510814	20937-01-30A	-	Casing,10×8×14	Hard Iron

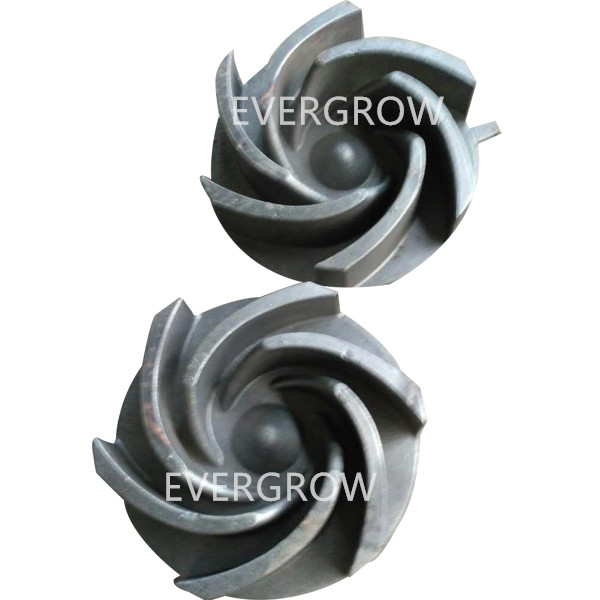

Impellers
2*	1	22503213	19204-XX-30	P25D233MRxxx	Impeller,3×2×13	Hard Iron
2*	1	22504313	19206-XX-30	P25D343MRxxx	Impeller,4×3×13	Hard Iron
2*	1	22505414	19224-XX-30	P25D454MRxxx	Impeller,5×4×14	Hard Iron
2*	1	22506511	19121-XX-30	P25D561MRxxx	Impeller,6×5×11	Hard Iron
2*	1	22506514	19121-XX-30	P25D564MRxxx	Impeller, 6×5×14	Hard Iron
2*	1	22508611	19121-XX-30	P25D561MRxxx	Impeller, 8×6×11	Hard Iron
2*	1	22508614	19116-A0-30	P25D684MRxxx	Impeller,8×6×14	Hard Iron
2*	1	22510814	21867-XX-30	-	Impeller,10×8×14	Hard Iron

ITEM	QTY	Evergrow No.	MISSION No.	DESCRIPTION	MATERAIL
Casings-includes studs,nuts & gasket without wear pads
1*	1	2500H3213	H19203-01-30A	Casing,3×2×13	Hard Iron
1*	1	2500H4313	H19205-01-30A	Casing,4×3×13	Hard Iron
1*	1	2500H5414	H19222-01-30A	Casing,5×4×14	Hard Iron
1*	1	2500H6511	H19122-01-30A	Casing,6×5×11	Hard Iron
1*	1	2500H6514	H19123-01-30A	Casing, 6×5×14	Hard Iron
1*	1	2500H8611	H19763-01-30A	Casing,8×6×11	Hard Iron
1*	1	2500H8614	H19117-01-30A	Casing,8×6×14	Hard Iron
1*	1	250H10814	H20937-01-30A	Casing,10×8×14	Hard Iron
Impellers and Casing Wear Pads
2*	1	2500M3213	H19204-XX-30	Impeller,3×2×13 Open	Hard Iron
2*	1	2500M4313	H19206-XX-30	Impeller,4×3×13 Open	Hard Iron
2*	1	2500M5414	H2523-XX-30	Impeller,5×4×14 Semi Open	Hard Iron
2*	1	2500M6511	H2524-XX-30	Impeller,6×5×11 Semi Open	Hard Iron
2*	1	2500M6514	H2524-XX-30	Impeller, 6×5×14 Semi Open	Hard Iron
2*	1	2500M8611	H2524-XX-30	Impeller, 8×6×11 Semi Open	Hard Iron
2*	1	2500M8614	H2525-XX-30	Impeller,8×6×14 Semi Open	Hard Iron
2*	1	250M10814	H2526-XX-30	Impeller,10×8×14 Semi Open	Hard Iron
1E	1	2500W4313	H2501-01-30A	Wear Pad,4×3×13 Casing	Hard Iron
1E	1	2500W5414	H2502-01-30A	Wear Pad,5×4×14 Casing	Hard Iron
1E	1	2500W6511	H2503-01-30A	Wear Pad,6×5×11 Casing	Hard Iron
1E	1	2500W6514	H2504-01-30A	Wear Pad, 6×5×14 Casing	Hard Iron
1E	1	2500W8611	H2505-01-30A	Wear Pad,8×6×11 Casing	Hard Iron
1E	1	2500W8614	H2506-01-30A	Wear Pad,8×6×14 Casing	Hard Iron
1E	1	2500W8614	H2527-01-30A	Wear Pad,10×8×14 Casing	Hard Iron

ITEM	Evergrow No.	Mission No.	DESCRIPTION	Material
1	S023939	20939-02-33	Shaft, Short pump	42CrMo
2	S021938	20938-02-1	Frame, Short pump	HT250
3	S014324	2224-01-43	Housing, Hydraulic Outboard Bearing	QT700
4	S011225	22225-01-01	Adapter, Hydraulic Drive	QT500
Parts for Short Pumps (All parts for short pumps are identical to the EG-250 except the above)
