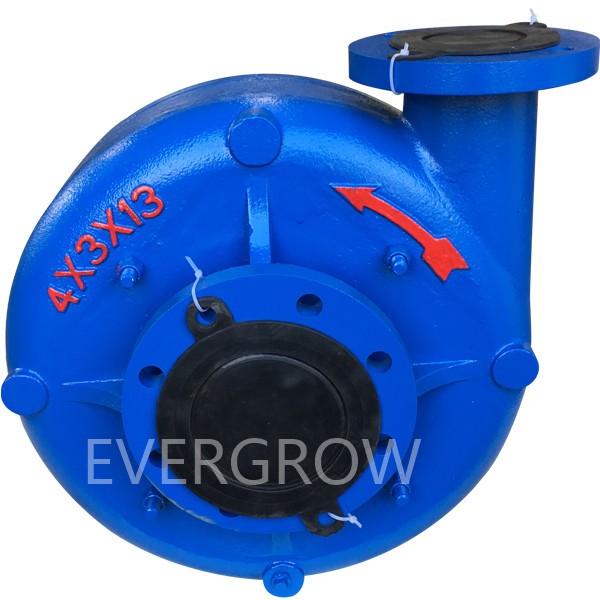

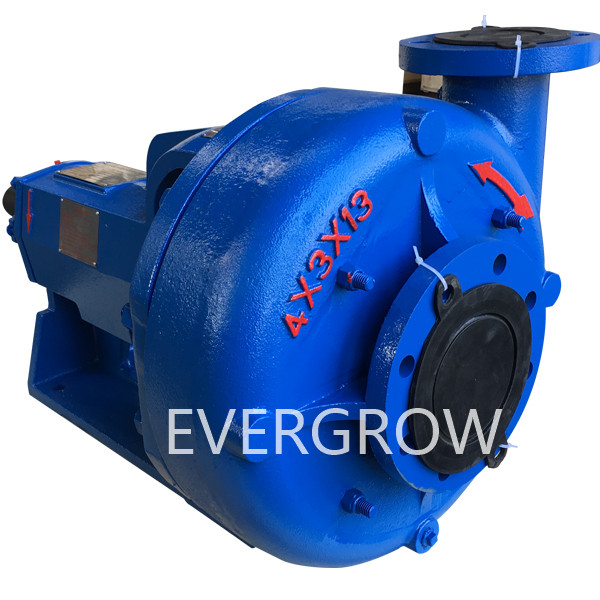

Mission 2500 Supreme Centrifugal pump has same technical performances same as Mission Magnum I series.
The most difference is the impeller is half-open for 2500 Supreme series, there is a wear pad in front of the casing, which can protect the pump casing to increase its service life.
Main technical specifications:
Model | Rotation speed r/min | Capacity m3/h | Pressure head m | Efficiency % | Motor HP kW |
10x8x14-2500 | 1450/1750 | 260-300 | 33-35 | 65 | 75/90 |
8x6x14-2500 | 1450/1750 | 240-260 | 33-35 | 65 | 55/75 |
6x5x14-2500 | 1450/1750 | 180-220 | 26-35 | 65 | 37/45 |
6x5x11-2500 | 1450/1750 | 160-200 | 22-28 | 65 | 30/37 |
5x4x14-2500 | 1450/1750 | 100-150 | 26-33 | 65 | 22/30 |
4x3x13-2500 | 1450/1750 | 60-90 | 26-30 | 65 | 11-22 |
Mission 2500 Supreme Centrifugal pump has same technical performances same as Mission Magnum I series.
The most difference is the impeller is half-open for 2500 Supreme series, there is a wear pad in front of the casing, which can protect the pump casing to increase its service life.
Main technical specifications:
Model | Rotation speed r/min | Capacity m3/h | Pressure head m | Efficiency % | Motor HP kW |
10x8x14-2500 | 1450/1750 | 260-300 | 33-35 | 65 | 75/90 |
8x6x14-2500 | 1450/1750 | 240-260 | 33-35 | 65 | 55/75 |
6x5x14-2500 | 1450/1750 | 180-220 | 26-35 | 65 | 37/45 |
6x5x11-2500 | 1450/1750 | 160-200 | 22-28 | 65 | 30/37 |
5x4x14-2500 | 1450/1750 | 100-150 | 26-33 | 65 | 22/30 |
4x3x13-2500 | 1450/1750 | 60-90 | 26-30 | 65 | 11-22 |
