Top Drive Component Maintenance And Inspection Guidelines

Maintenance and inspection procedures for the Shell, Actuator, and IBOP components on a TDS-11SA top drive system are crucial for ensuring operational efficiency and safety. Here are some:

Shell:

1. **Visual Inspection**:

  - Check for any signs of corrosion, dents, or other damage on the shell.

  - Inspect for leaks or areas of weakness that may compromise the structural integrity.

2. **Cleaning and Maintenance**:

  - Clean the shell regularly to remove dirt, debris, and other contaminants.

  - Ensure that any protective coatings on the shell are intact and in good condition.

Actuator:

1. **Functional Testing**:

  - Test the actuator's functionality, including its response to commands for tilt, rotation, or other movements.

  - Verify that the actuator operates smoothly without abnormal noises or vibrations.

2. **Fluid Levels and Leak Checks**:

  - Check the fluid levels in the actuator and top drie system.

  - Inspect for any leaks in hydraulic lines or connections related to the actuator.

IBOP:

1. **Sealing and Pressure Testing**:

  - Inspect the IBOP for proper sealing and functionality.

  - Conduct pressure testing to ensure the IBOP can effectively control well pressure in case of emergencies.

2. **Operational Checks**:

  - Verify that the IBOP can be activated and deactivated as per operational requirements.

  - Ensure that all controls related to the IBOP are functioning correctly.

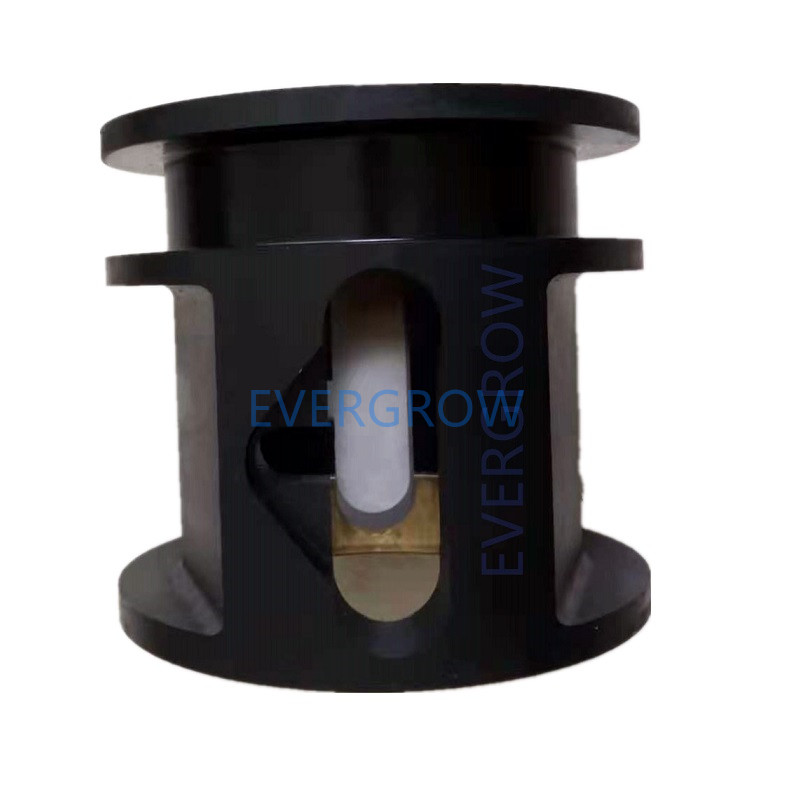

SHELL,ACUTATOR,IBOP           OEM #110042                 EVERGROW #165063
