Views: 21 Author: Site Editor Publish Time: 2025-05-28 Origin: Site

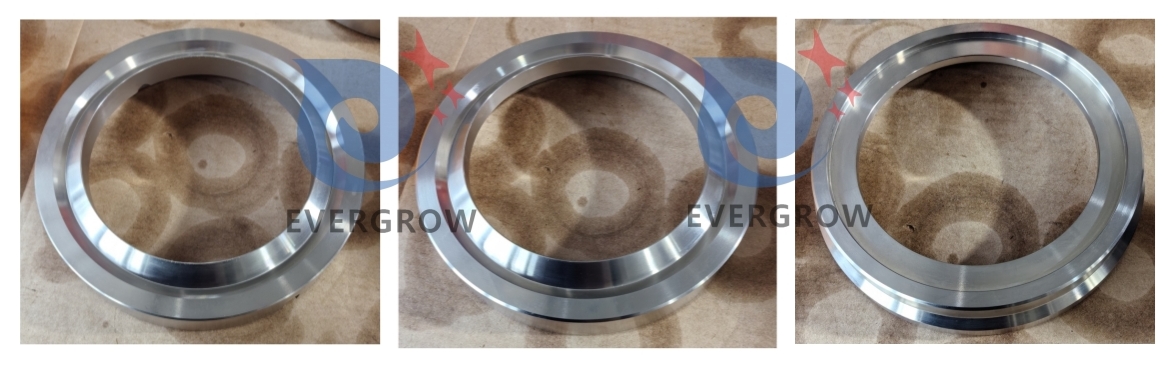

Spacers for 30123440 Wash Pipe Assy
There are upper spacer 30123434, middle spacer 30123435 and lower spacer 30123436 inside the wash pipe assembly 30123440.
Spacers are key parts for the top drive assy.
1. Reduce vibration.
It can assist to absorb vibrations and shocks during the drilling work.
2. Wear resistance and protect for the wash pipe assy.
It can reduce and minimize the contact between rotating and stationary items inside the wash pipe assy.
3. Sealing support.
It supports to prevent leakage of oil drilling fluid.

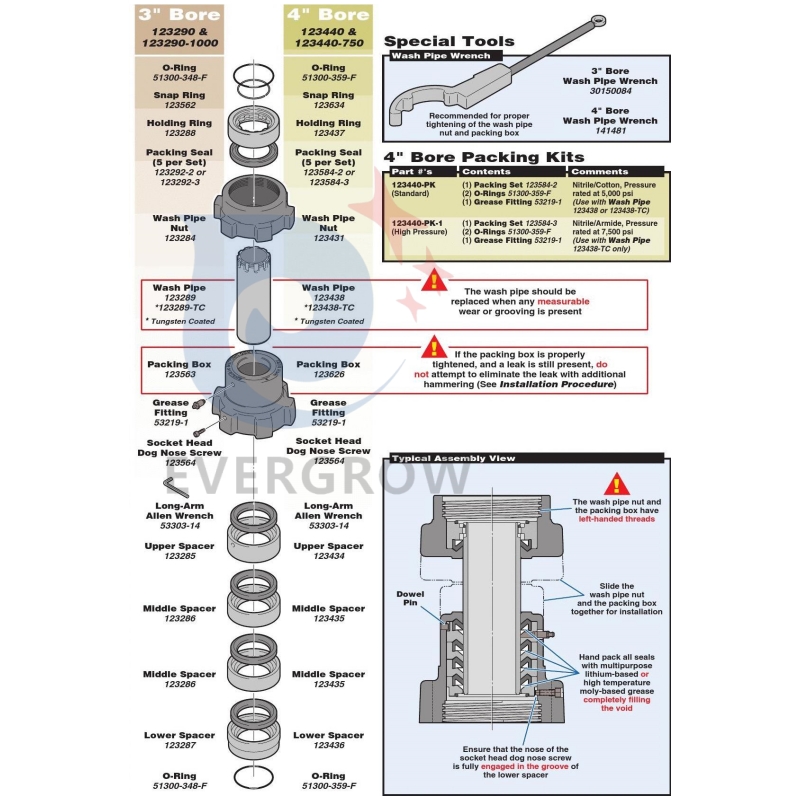

| # | Description | OEM Part number | Evergrow Part number |
| 1 | O-Ring | 51300-359-F | 76950-359F |
| 2 | Snap Ring | 30123634 | 60247268 |
| 3 | Holding Ring | 30123437 | 60246875 |
| 4 | Packing Seal(5 per set) | 30123584-2 or 30123584-3 | 60247068 |
| 5 | Wash Pipe Nut | 30123431 | 60246862 |
| 6 | Wash Pipe | 30123438 or 30123438-TC(Tungsten Coated) | 60246876 |
| 7 | Packing Box | 30123626 | 60247252 |
| 8 | Grease Fitting | 53219-1 | 79829-1 |
| 9 | Socket Head Dog Nose Screw | 30123564 | 60247028 |
| 10 | Long Arm Allen Wrench | 53303-14 | 79955-14 |
| 11 | Upper Spacer | 30123434 | 60246868 |
| 12 | Middle Spacer | 30123435 | 60246870 |
| 13 | Lower Spacer | 30123436 | 60246872 |
| 14 | O-Ring | 51300-359-F | 76950-359F |
