Replacing Hydraulic Filter on TDS11SA Top Drive: Quick Guide

Before you begin changing the filter, make sure the top drive is safely shut down and all hydraulic pressure is relieved.

Gather the necessary tools, such as a wrench or socket wrench, a container suitable for collecting oil, and rags for cleaning up spills.

1. Remove the old filter:

- Use the appropriate tools to loosen and remove the old hydraulic filter from the housing.

- Be prepared for some hydraulic oil to spill, so have a collection container ready.

2. Install the new filter:

- Before installing the new filter, make sure the filter housing is clean and free of debris.

- Apply a thin layer of clean hydraulic oil to the gasket of the new filter to ensure a proper seal.

- Manually screw the new hydraulic filter into place, making sure it is properly aligned.

3. Tighten the filter:

- Carefully tighten the new hydraulic filter to the manufacturer's torque specifications to prevent leaks. Avoid over-tightening.

4. Check for leaks:

- Once the new filter is securely in place, start the top drive and monitor around the filter housing for any leaks.

- If there is a leak, shut down the system immediately and correct the problem before continuing operation.

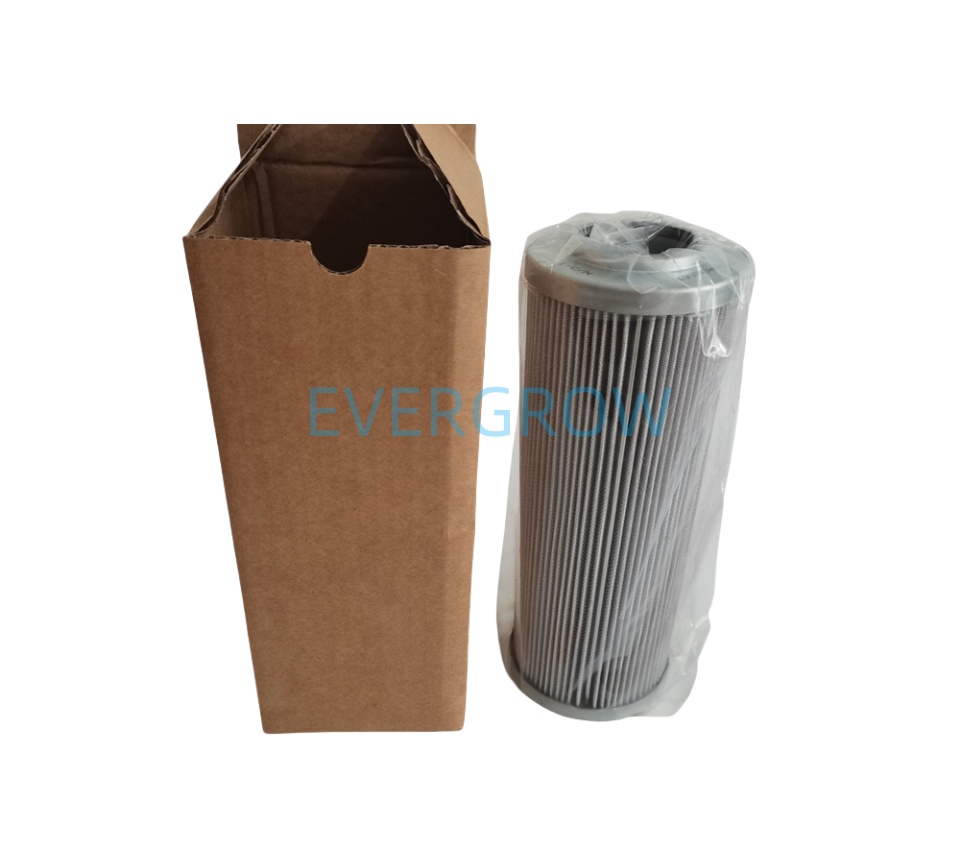

FILTER,HYDRAULIC       OEM 30173216             EVERGROW #60346432
