Keep Your TDS11SA Top Drive Running with the Reliable Wash Pipe Assembly 30123290

When you're running a NOV TDS11SA top drive on a drilling rig, you know the pressure: the operation can't afford long breakdowns. The part that often determines whether you keep turning to the right or stop cold is the wash pipe assembly. That's why the OEM replacement wash pipe assembly 30123290 exists — and why it deserves your full attention.

Why the Wash Pipe Assembly Matters

A wash pipe assembly is essentially the heart of your top drive’s mud circulation system. It forms a high-pressure seal between the rotating drill string and the stationary housing of the top drive, preventing drilling fluid from leaking as it travels down the drill string. Since the drill string rotates at high speed while fluid is pumped at tremendous pressures, the wash pipe must endure both motion and abrasion — it’s a consumable component designed to be regularly inspected and replaced. Without a reliable wash pipe, you risk fluid leaks, equipment downtime, and safety hazards.

The TDS11SA top drive is already a compact, powerful machine capable of generating up to 500 tons of lifting force while installing onto existing rigs within hours. Pairing it with the right wash pipe assembly ensures that performance is never compromised.

Wash Pipe Assembly 30123290: Designed for the TDS11SA top drive system

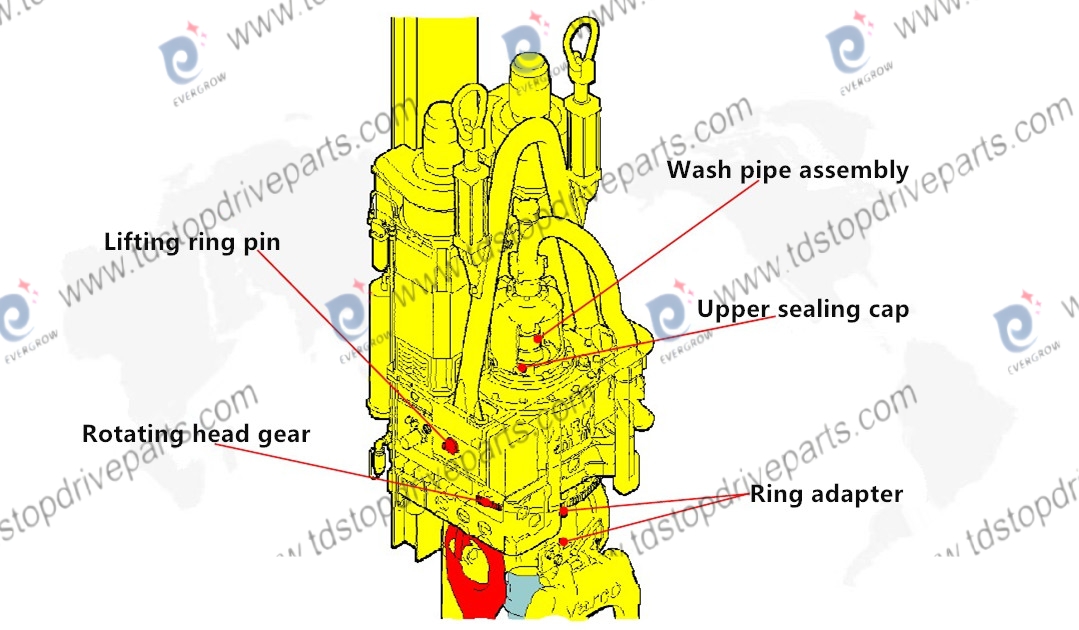

The OEM part number 30123290 is engineered specifically for the NOV TDS-11SA top drive. It's located between the S-Pipe 117063 and the main shaft 121131, where it ensures reliable mud circulation, excellent sealing performance, and extended service life even in demanding drilling environments. Every wash pipe assembly is manufactured to match OEM dimensions and tolerances, guaranteeing a perfect fit and smooth operation within the TDS-11SA system.

Packing Seal Kit (Item 5) – Contains the high-pressure seals that prevent mud leakage. Two part numbers are listed for the same kit with different materials options(different ordering references).

3 inch Wash Pipe (Item 6) – The main wear-resistant tube through which drilling fluid flows.

Holding Ring (Item 7) – Secures the wash pipe in position inside the top drive.

Spacers (Items 8, 9, 10) – Position the wash pipe and packing stack correctly; upper, middle, and lower spacers ensure proper alignment and compression with materials upgraded.

Nut (Item 11) – Locks the assembly together, maintaining preload on the packing seals.

Packing Assembly Box (Item 12) – The housing that contains the entire packing and wash pipe assembly.

What You Can Count On

OEM compatible design — Fully compatible with the NOV TDS-11SA top drive for easy replacement and trouble-free operation.

Premium wear-resistant materials — Constructed from high-strength alloy steel and stainless steel, with optional hardfacing or carbide coating to resist abrasion from high-solids drilling fluids.

Precision machining — Tight concentricity and a smooth surface finish improve packing life and reduce internal wear.

High-pressure performance — Rated up to 7500 PSI, designed for demanding drilling applications.

3-inch bore size — As per the TDS-11SA standard configuration.

The Real-World Benefits

Longer wash pipe and seal life — Less frequent replacements, fewer disruptions.

Reduced mud leakage and improved safety — A cleaner, safer rig floor.

Lower maintenance cost and downtime — More time drilling, less time repairing.

Smooth installation and easy replacement — Get back to work quickly.

When to Replace

Because the wash pipe is a wear component that’s constantly exposed to abrasive drilling fluids and mechanical stress, it’s critical to inspect it regularly. When you notice signs of wear, decreased seal performance, or increased mud leakage, it’s time to replace the assembly. Keeping a spare wash pipe assembly 30123290 on hand is a smart way to avoid unexpected downtime and keep your drilling operation moving.

Don't Wait Until It Fails

Whether you’re drilling onshore or offshore, the TDS11SA top drive is a workhorse that demands high-quality components. The wash pipe assembly 30123290 is the right part to keep it performing at peak efficiency.

If you need replacement wash pipe assemblies or other TDS11SA spare parts, reach out to a trusted supplier like Linhai Evergrow and keep your rig turning.
