Inspecting The IBOP Actuator Cylinder And Yoke

Disassembling the IBOP actuator cylinder and yoke

1. Shutdown the power and bleed the system (turn the valve on

the bottom of the gearcase to the SHUT DOWN position).

2. Remove one gate hinge pin, open the gate, and pull back the

torque wrench assembly.

3. Disconnect the hydraulic lines from the IBOP actuator cylinder

and cap all connections.

4. Unpin and remove the IBOP actuator cylinder and yoke.

5. Replace the hydraulic lines as necessary.

6. Check for cylinder leaks.

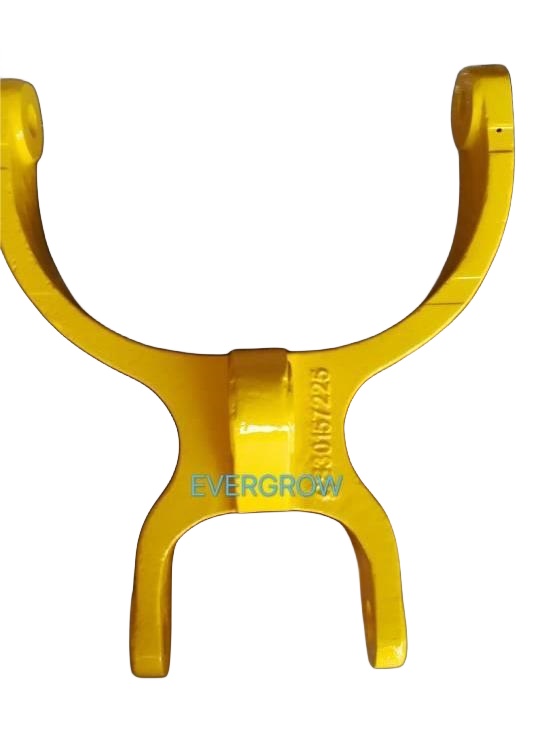

Yoke OEM #30157225            EVERGROW #60314450
