Do You Know How To Disassembly/assembly Shot Pin Assembly?

1. Disconnect the hydraulic and electrical lines.

2. Remove the caps crews that attach the shot pin assembly to

the main body.

3. Remove the caps crew and lock washer holding the shot pin

cover in place

4. Remove the shot pin components

(end cap, o-rings, rod seal assembly, shot pin)

5. Inspect the shot pin bearing and press the bearing out of the

shot pin mounting bracket if the bearing is scored or

damaged.

6. Remove the cap screw and lock washer that hold the pinion

gear in place, and remove the gear.

7. Remove the cap screws and lock washers that hold the

hydraulic motor in place and remove the motor.

Inspect the disassemble parts and replace any worn or damaged parts. Assemble the shot pin in the reverse order of disassembly.

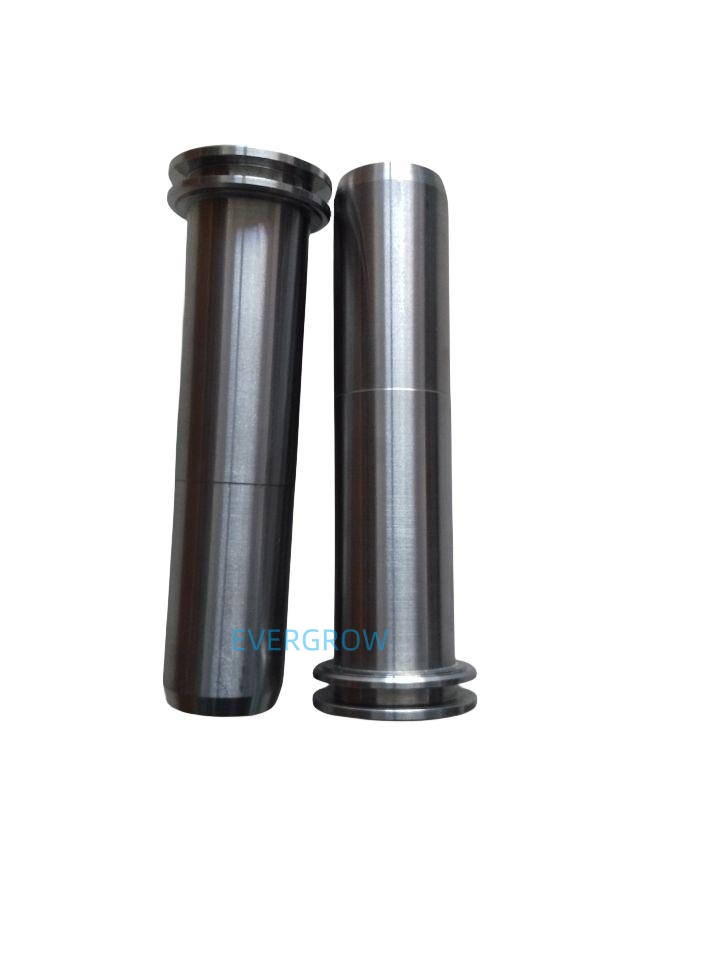

EVERGROW supplies the NOV TDS-11 SA top drive replacement parts. They are 100% interchangeable with the original ones. Quality guaranteed, welcome to order:shot pin OEM#  30173958  EVERGROW# 60347916
