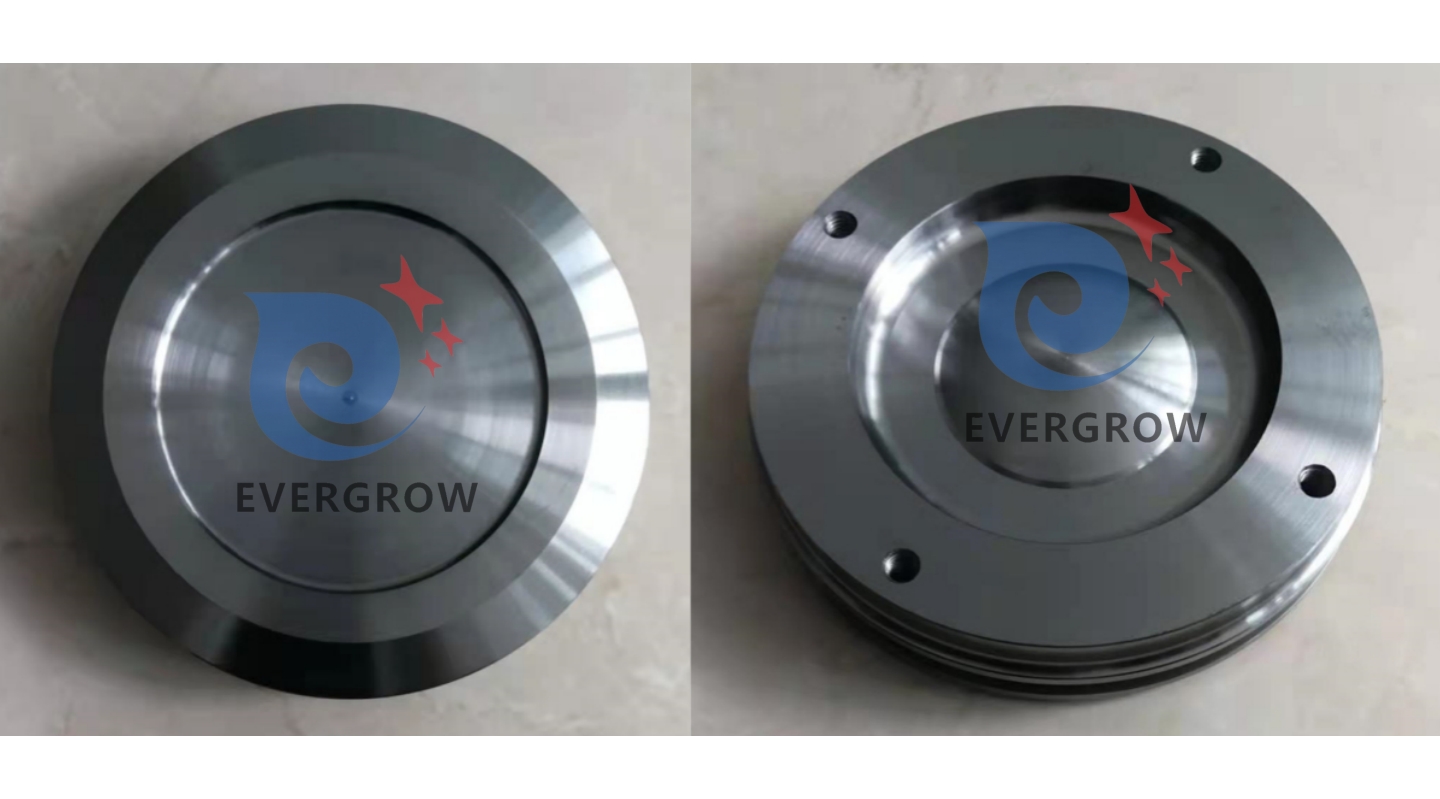

Cylinder head 11075 is a part of the clamp cylinder assy 30157287 for pipe handler in the NOV Varco TDS-11SA top drive system
It works together with many other parts like clamp body, gate, piston, jaw assy, seals, screws and nuts to keep the clamp cylinder assy run well.
30157287 CLAMP CYLINDER ASSY PH75 | |||
# | OEM Ref# | Description | Evergrow Part Nos |
1 | 30157221 | BODY,CLAMP CYLINDER | 60314442 |
2 | 124902 | GATE | 187353 |
3 | 12820 | PISTON | 19230 |
4 | 11075 | CYLINDER HEAD | 16613 |
5 | 125013（30175778） | PIN,HINGE | 187520 |
6 | 11085 | RING,CYLINDER HEAD | 16628 |
7 | 72219 | SEAL,PISTON | 57775 |
8 | 72220 | SEAL,ROD | 57776 |
9 | 72221 | RING,WIPER | 57778 |
10 | 50905-C | WASHER,LOCK,REG | 76358-C |
11 | 50005-20-C5D | SCREW,HEX HD | 75008-20-C5D |
12 | 50908-C | WASHER,LOCK,REG | 76362C |
13 | 118511 | MANIFOLD ASSEMBLY,CLAMP CYLINDER | 177767 |
14 | Z6001 | LOCKWIRE,.051 DIA | 9002.051 |
15 | 53201 | FITTING,GREASE | 79802 |
16 | 30124898 | STABILIZER,FRONT | 60249796 |
17 | 117989 | SCREW,HEX HD,DRILLED SHANK | 176984 |
18 | 50516-C | NUT,HEX,SLOTTED | 75774C |
19 | 50816-N-C | WASHER | 76224-NC |
20 | 51403-14-S | PIN,COTTER | 77105-14S |
21 | 30176011 | RETAINER,HINGE PIN | 60352022 |
22 | 50008-10-C5D | SCREW,HEX HD | 75012-10C5D |
23 | 30158690 | LINER,STABILIZER | 60317380 |
24 | 51402-8-S | PIN,COTTER | 77103-8S |
25 | 79179 | SPRING,DIE | 52786 |
26 | 51710-5-C | MODIFIED,SHOULDER,BOLT | 77565-5C |
27 | 30125052 | JAW ASSY,NC 50-5 1/2 FH(φ6.25-7.50) | 60250104 |
28 | 125158 | STAB,GUIDE ASSY,NC 50-5 1/2 FH(SET) | 187737 |
29 | 16532 | KEY | 11021 |
30 | 50108-14-C | SCREW,CAP,SOC HEAD | 75162-14C |
31 | 51108-C | WASHER,LOCK,HI COLLAR | 76662C |
32 | 50912-C | WASHER,LOCK,REG | 76368 |
33 | 50012-16-C5D | SCREW,HEX HD | 75018-16C5D |
34 | 50508-C | NUT,HEX-SLOTTED | 75762C |
