Views: 0 Author: Site Editor Publish Time: 2026-02-06 Origin: Site
The S-Pipe Package 30156835-R75-1 is a fully integrated assembly engineered for use in NOV TDS-11SA and TDS-9SA top drive systems. Designed to support proper S-pipe installation, sealing, and structural stability, this package provides all critical components required to maintain dependable fluid containment and secure mechanical alignment in high-pressure drilling environments. By delivering a coordinated set of parts, the S-Pipe Package 30156835-R75-1 helps streamline maintenance procedures while promoting safe, efficient operation.
What sets Evergrow apart is our ability to supply the entire S-Pipe Package 30156835-R75-1 as a single, quality-assured solution. Every component is carefully manufactured, inspected, and verified to ensure 100% compatibility and consistent performance once installed. Sourcing the complete assembly from one trusted supplier reduces procurement complexity, minimizes the risk of mismatched parts, and supports faster turnaround during both planned servicing and urgent replacements.

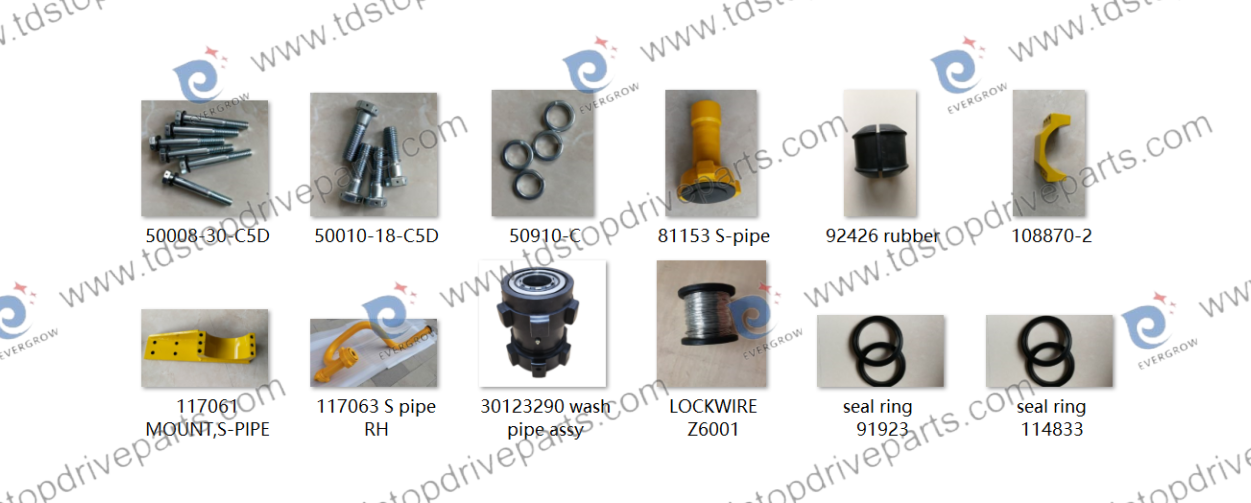

| S-PIPE PACKAGE 30156835-R75-1 | |||
| # | Description | OEM Ref Nos | Qty |
| 0 | S-PIPE PACKAGE | 30156835-R75-1 | 1 |
| 1 | SCREW,CAP-HEX HEAD | 50008-30-C5D | 6 |
| 2 | MOUNT,S-PIPE-TOP | 108870-2 | 1 |
| 3 | MOUNT,S-PIPE,RH(OUTSIDE GUARD) | 117061 | 1 |
| 4 | RUBBER,S-PIPE | 92426 | 1 |
| 5 | WASHER,LOCK-REGULAR | 50908-C | 6 |
| 6 | ASSY,PLUG,3" FIG 1002 | M614002641 | 1 |
| 7 | SEAL RING,3" FIG 1002 | 91923 | 1 |
| 8 | SCREW,CAP-HEX HEAD | 50010-18-C5D | 4 |
| 9 | WASHER,LOCK-REGULAR | 50910-C | 4 |
| 10 | LOCKWIRE(0.051) | Z6001（0.051） | 1 |
| 11 | S-PIPE,RH,WELDMENT,7500psi(OUTSIDE GUARD) | 117063-7500 | 1 |
| 12 | SEAL RING,4" FIG 1002 | 114833 | 1 |
| 13 | WING NUT,4" FIG 1002 | 81158 | 1 |
| 14 | ASSEMBLY,WASH PIPE | 30123290 | 1 |
| 15 | O-RING | 51300-425-B | 1 |
| 16 | ELBOW,S-PIPE,4" API LPT END,FEMALE | 81153 | 1 |
Built to meet demanding drilling conditions, the components within the S-Pipe Package 30156835-R75-1 are selected for durability, sealing integrity, and mechanical strength. Together, they help maintain pressure control, reduce the likelihood of leaks, and ensure the S-pipe assembly remains securely supported during continuous operation. By choosing Evergrow, buyers gain more than individual parts—they benefit from a complete, ready-to-install package backed by strict quality control and industry expertise. Our integrated S-Pipe Package 30156835-R75-1 supply approach supports operational reliability, shortens installation timelines, and helps keep top drive systems performing at their best in challenging field environments.
