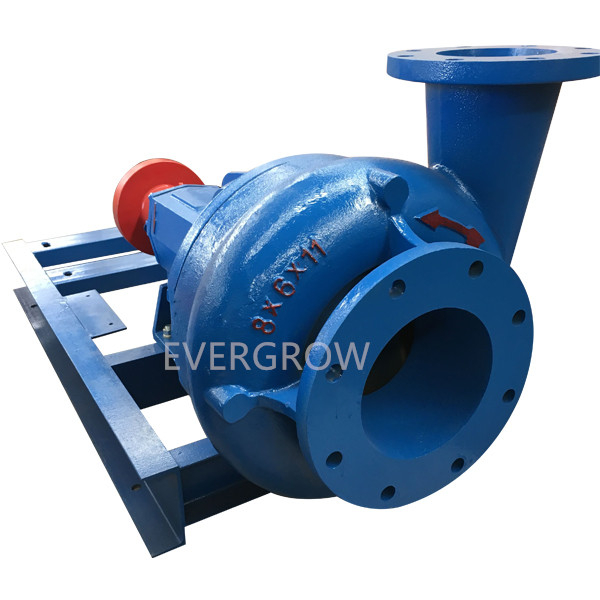

8x6x11 Centrifugal pump is mainly used to provide drilling fluid with some pressure and displacement for desander, desilter, and mud mixer, to guarantee the high efficient work of these equipments.
This model centrifugal pump is suitable for drilling rigs of 2500-4000 meters.
Main technical specifications:
Impeller diameter | 280mm（11″） |
Capacity | 240 m3/h |
Pressure head | 26 m |
Efficiency | 65% |
Motor HP | 37/45 kW |
Motor rotation rate | 1450 rpm |
Inlet diameter | 8″ |
Outlet diameter | 6″ |
Weight | 700/750 kg |
Dimension/mm | 1877×645×850 |
8x6x11 Centrifugal pump is mainly used to provide drilling fluid with some pressure and displacement for desander, desilter, and mud mixer, to guarantee the high efficient work of these equipments.
This model centrifugal pump is suitable for drilling rigs of 2500-4000 meters.
Main technical specifications:
Impeller diameter | 280mm（11″） |
Capacity | 240 m3/h |
Pressure head | 26 m |
Efficiency | 65% |
Motor HP | 37/45 kW |
Motor rotation rate | 1450 rpm |
Inlet diameter | 8″ |
Outlet diameter | 6″ |
Weight | 700/750 kg |
Dimension/mm | 1877×645×850 |
