2500 Supreme parts

2500 Supreme parts

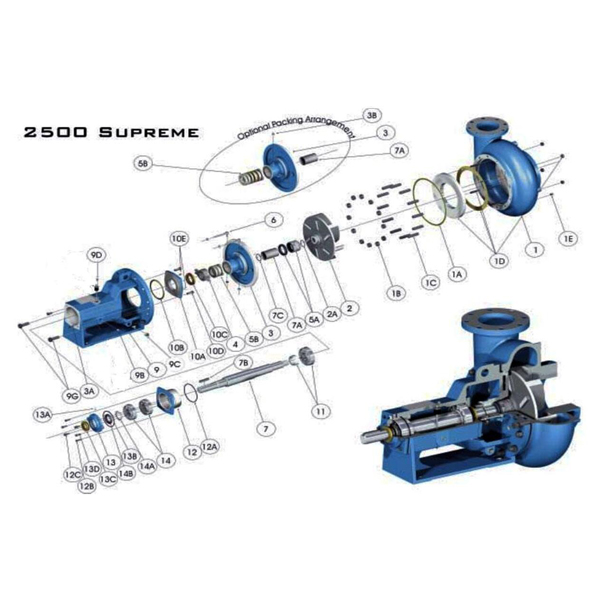

Mission, MCM centrifugal pump 2500 Supreme parts
Availability:
Quantity:

2500 Supreme parts


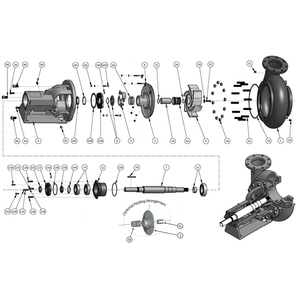

Mission, MCM centrifugal pump 2500 Supreme parts

ITEM

QTY

MISSION

PART No.

DESCRIPTION

MATERAIL

WEIGHT

kg

1*

1

See below

Casing



1A

1

10399-46-1

Gasket,casing

Vellumoid

0.01

1B

12

3932-61

Nut,casing

Stl

0.05

1C

12

H2507-3

Stud,casing

Stl

0.16

1D*

1

See below



Wear pad.includes

 Stds,rucsgskt



1E

1

8505-2H

Plug,Casing Drain

Stl

0.03

2*

1

See below

Impeller



2A

1

H19110-72

Seal,impeller

Viton

0.002

3*#

1

H22223-01-30

Stuffing box,mech.seal

  Hard Iron

20

3*&

1

H20614-01-30

Stuffing box,packed

  Hard Iron

20

3A

2

H3861-117

Bolt,stuffing box

Stl

0.05

3B&

1

19368-1H

Grease fitting

Stl

0.01

4

2

H20622AH

Gland assy,packing

Stl 304

1

5A#

1

H22451-1A

Seal,mechanical

Tung/Tung

1

5B~

1

8264-24-0B

Packing, Shaft


0.7

6

2

20629

Bolt assy,gland

Stl 304

0.15

7

1

H20612-02-33

Shaft

42CrMo

17

7A#

1

H20613-21A

Sleeve,Shaft


1

7A&

1

H20613-21G-7A

Sleeve,Shaft(Ceramic)


1

7B

1

H4372-5-21

Key,Shaft

Stl

0.11

7C

1

23444-01-72

Seal,Shaft Sleeve

Viton

0.005

8

1

22210-1A

Deflector,Assembly

Composite

0.4

9

1

H17444

Frame,Grease Lubricated

Cast iron

80

9C

1


Plug,Frame Drain

Stl

0.033

9D

1

H8267-1

Breather

Stl


9G

2

H2538-1

Bolt,Casing Jack

Stl


10A

1

H17950

Cover,Inboard Bearing

Iron

2.6

10B

1

H20625

Gasket, Inboard Bearing Cover

Vegetable fiber

0.01

10C

1

H2564-4

Labyrinth Seal,IB Brg Cvr

Buna-n

0.06

10D

2

H3861-1

Bolt,I.B.Brg.Cover

Stl

0.03

10E

1


Grease Fitting

Stl


11

1

N/A

Bearing,Inboard

Vendor

2.1

12

1

H20624-01-01

Houding,O.B.Bearing

Iron

6

12A

1

H7496-253

Seal,O.B.Brg Housing

Buna-n

0.01

12B

4

H3861-138

Bolts,O.B.Brg.Housing

Stl

0.05

12C

2

H3932-62

Nut,O.B.Brg.Housing

Stl

0.016

13

1

20617A

Cover,O.B.Bearing

Iron

1.8

13A

1


Grease Zerk,O.B.Brg.Cvr.

Stl

0.01

13B

1

H7496-26

O-ring,O.B.Bearing Cover

Buna-n

0.001

13C

1

H2564-3

Labyrinth Seal,O.B. Brg Cvr.

Buna-n

0.04

13D

2

H3861-139

Bolt,O.B.Brg.Cover

Stl

0.025

14

2

H20616-1S

Bearing,O.B.(2 Req’d)

Vendor

1.5

14A

1

H6124-4

Lockwasher,O.B.Bearing

Stl

0.01

14B

1

H6123-4

Locknut,O.B.Bearing

Stl

0.22

Casings-includes studs,nuts &   gasket

1*

1

H19203-01-30A

Casing,3×2×13

 Hard Iron

55

1*

1

H19205-01-30A

Casing,4×3×13,w/   wear pad

 Hard Iron

55

1*

1

H19222-01-30A

Casing,5×4×14   w/ wear pad

 Hard Iron

85

1*

1

H19122-01-30A

Casing,6×5×11   w/ wear pad

 Hard Iron

88

1*

1

H19123-01-30A

Casing,   6×5×14 w/ wear pad

 Hard Iron

90

1*

1

H19763-01-30A

Casing,   8×6×11 w/ wear pad

 Hard Iron

95

1*

1

H19117-01-30A

Casing,8×6×14   w/ wear pad

 Hard Iron

125

1*

1

H20937-01-30A

Casing,10×8×14   w/ wear pad

 Hard Iron

150

Impellers and Casing Wear Pads

2*

1

H19204-XX-30

Impeller,3×2×13   Open

Hard Iron

9

2*

1

H19206-XX-30

Impeller,4×3×13   Open

Hard Iron

12.5

2*

1

H2523-XX-30

Impeller,5×4×14  Semi Open

Hard Iron

18

2*

1

H2523-XX-30

Impeller,6×5×11  Semi Open

Hard Iron

17

2*

1

H2523-XX-30

Impeller,   6×5×14 Semi Open

Hard Iron

22

2*

1

H2524-XX-30

Impeller,   8×6×11 Semi Open

Hard Iron

23

2*

1

H2524-XX-30

Impeller,8×6×14   Semi Open

Hard Iron

25

2*

1

H2526-XX-30

Impeller,10×8×14   Semi Open

Hard Iron

26

1E

1

H2501-01-30A

Wear Pad,4×3×13 Casing

Hard Iron

9

1E

1

H2502-01-30A

Wear Pad,5×4×14 Casing

Hard Iron

9.5

1E

1

H2503-01-30A

Wear Pad,6×5×11 Casing

Hard Iron

8.5

1E

1

H2504-01-30A

Wear Pad, 6×5×14   Casing

Hard Iron

10

1E

1

H2505-01-30A

Wear Pad, 8×6×11   Casing

Hard Iron

9.5

1E

1

H2506-01-30A

Wear Pad,8×6×14 Casing

Hard Iron

11

1E

1

H2507-01-30A

Wear Pad,10×8×14   Casing

Hard Iron

12
